Name: Anten Iflight Albatross V2 13cm Lhcp Rp-sma
Availability: InStock

CAT FPV

LHCP Specifications

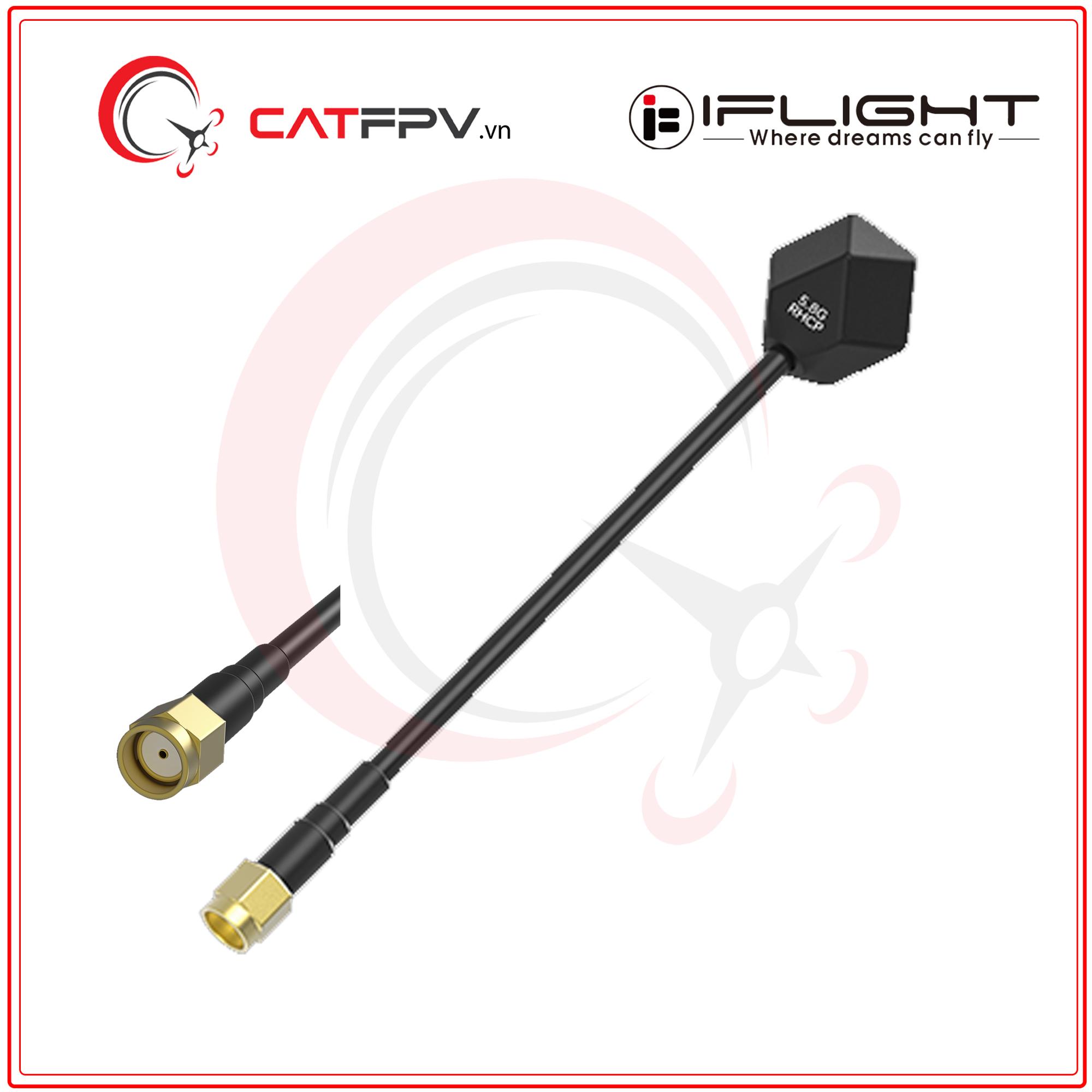

Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna
Interface: LHCP
Frequency range: 5.3GHz-6GHz
Max Gain: 2.72dBi (5621MHz)
MIN Gain: 2.12dBi (5436MHz)
AVG Gain: 2.42dBi
MAX VSWR: 1.72（5326MHz）
MIN VSWR: 1.35（5917MHz）
AVG VSWR: 1.62
MAX radiation efficiency: 84.25%（5917MHz）
MIN  radiation efficiency: 73.5%（5326MHz）
AVG radiation efficiency: 80.3%
Polarization: LHCP
Cross polarization suppression: -26.7dB
Axial Ratio：≤3
Cable: RG141
Weight: 11.5g

Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna

MAX radiation efficiency: 84.25%（5917MHz）

MIN  radiation efficiency: 73.5%（5326MHz）
