Name: Bộ Khung BetaFPV Pavo25 V2
Availability: InStock

CAT FPV

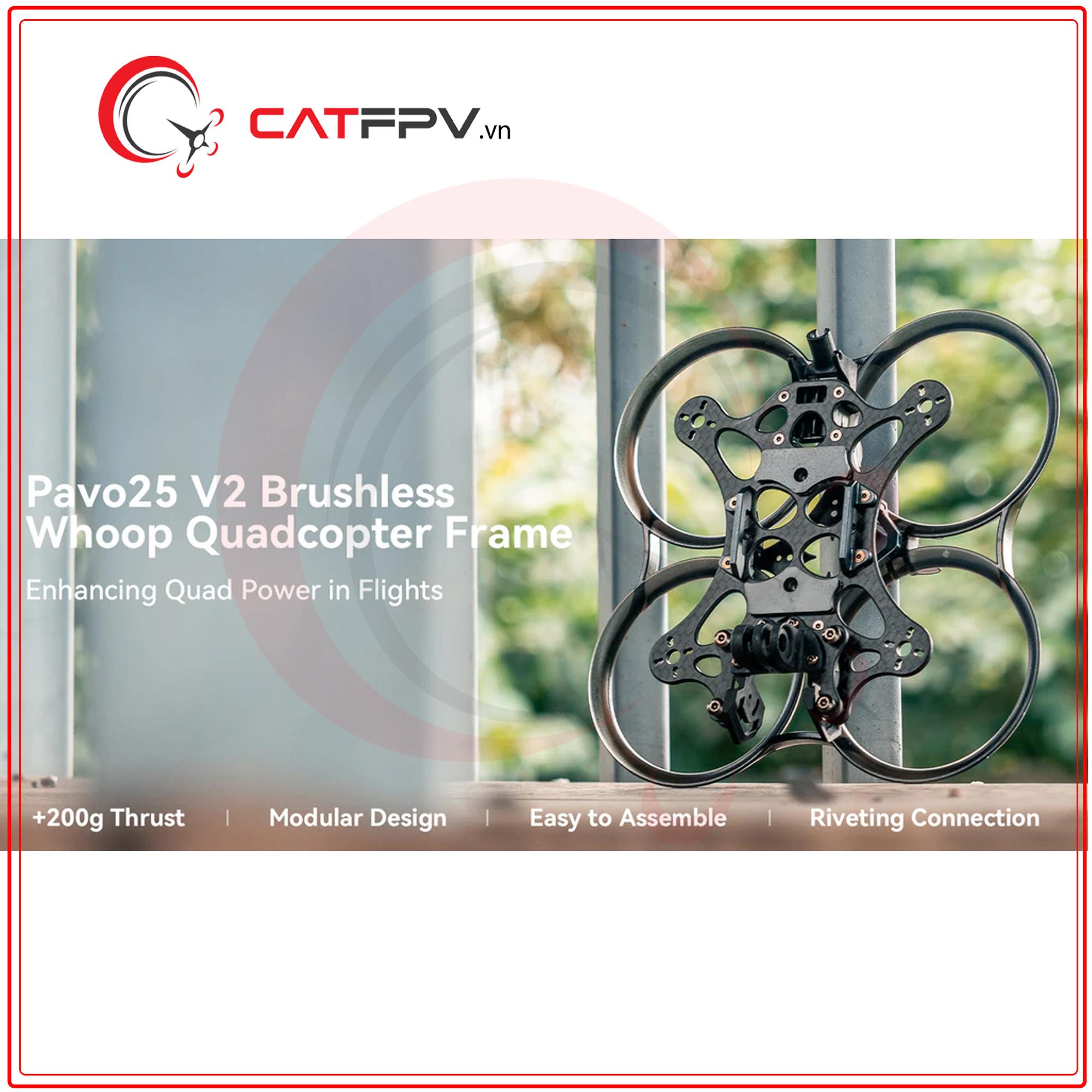

Pavo25 V2 Brushless Whoop Frame is the revolutionary Cinewhoop that the product team has come up with after spending countless hours applying aerodynamics. The whoop duct can enhance an additional 200g thrust and a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight while also accommodating mainstream HD VTX and Naked Action Cams, guaranteeing it is the smoothest, most powerful, and most responsive flight among all 2.5" cinewhoops.
Bullet Point
Pavo25 V2 is specifically designed to seamlessly integrate with the DJI O3 Air Unit, addressing the previous limitation of Pavo25's inability to accommodate O3 compatibility.
The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.

Rocket engine-inspired duct design improves lateral stability and increases thrust by 200g compared to without a propeller guard, giving the Pavo25 V2 stronger power and a better flying feel.
The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.
The COB light strip assembly that can be switched on and off remotely allows pilots to enjoy flying in any scene.
Specification

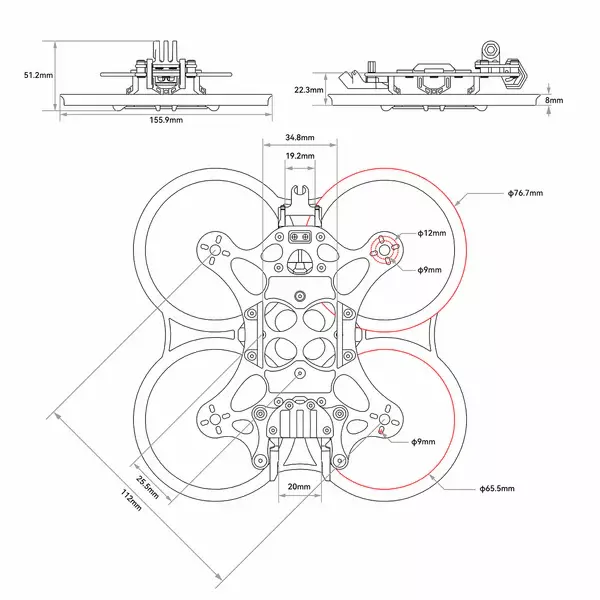

Item: Pavo25 V2 Brushless Whoop Frame
Wheelbase: 112mm

Top Plate: 2.5mm T700 carbon fiber

Base Plate: 1.5mm T700 carbon fiber

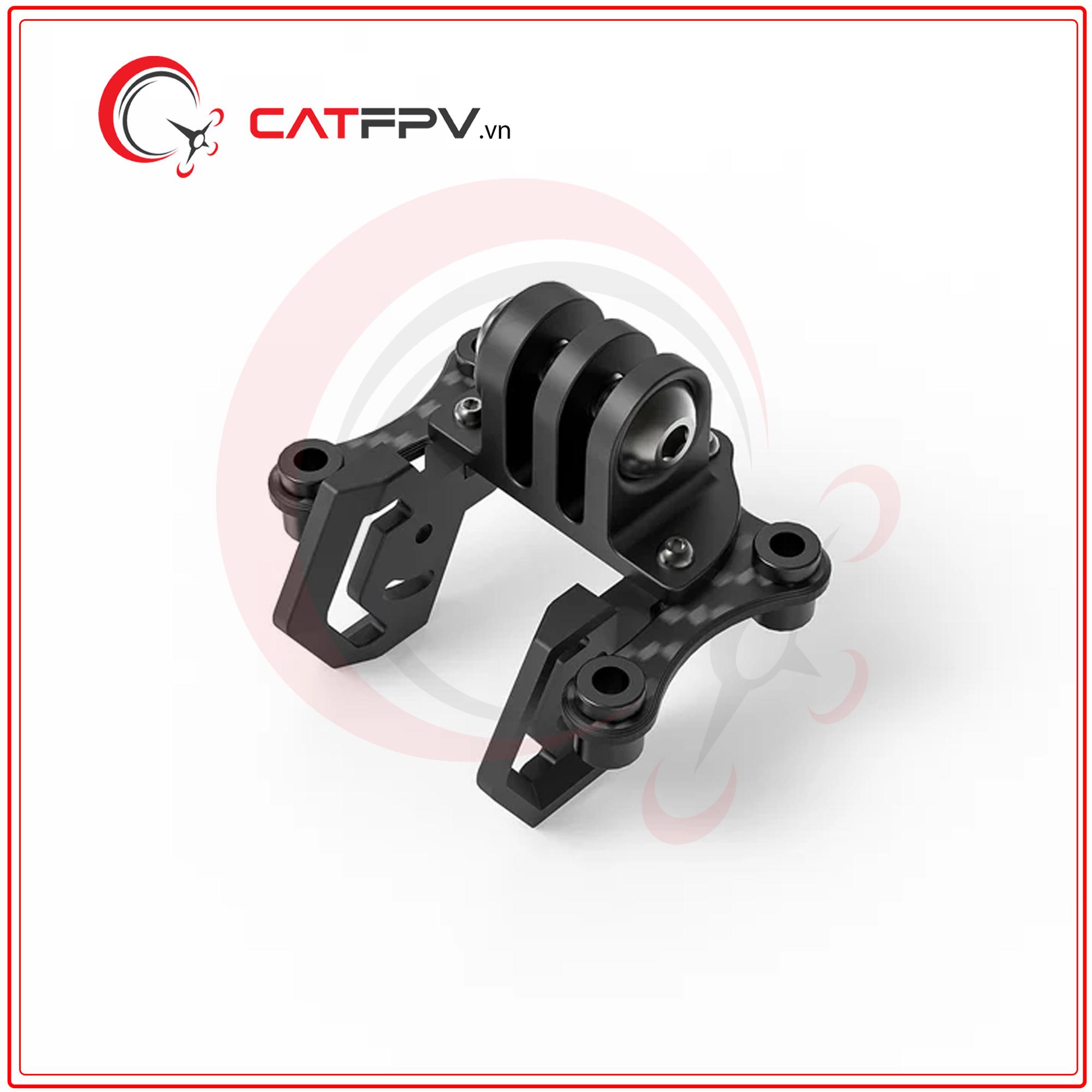

Gimbal Carbon Plate: 2mm T700 carbon fiber

Column: 7075 aluminum alloy CNC

Battery Holder: 7075 aluminum alloy CNC

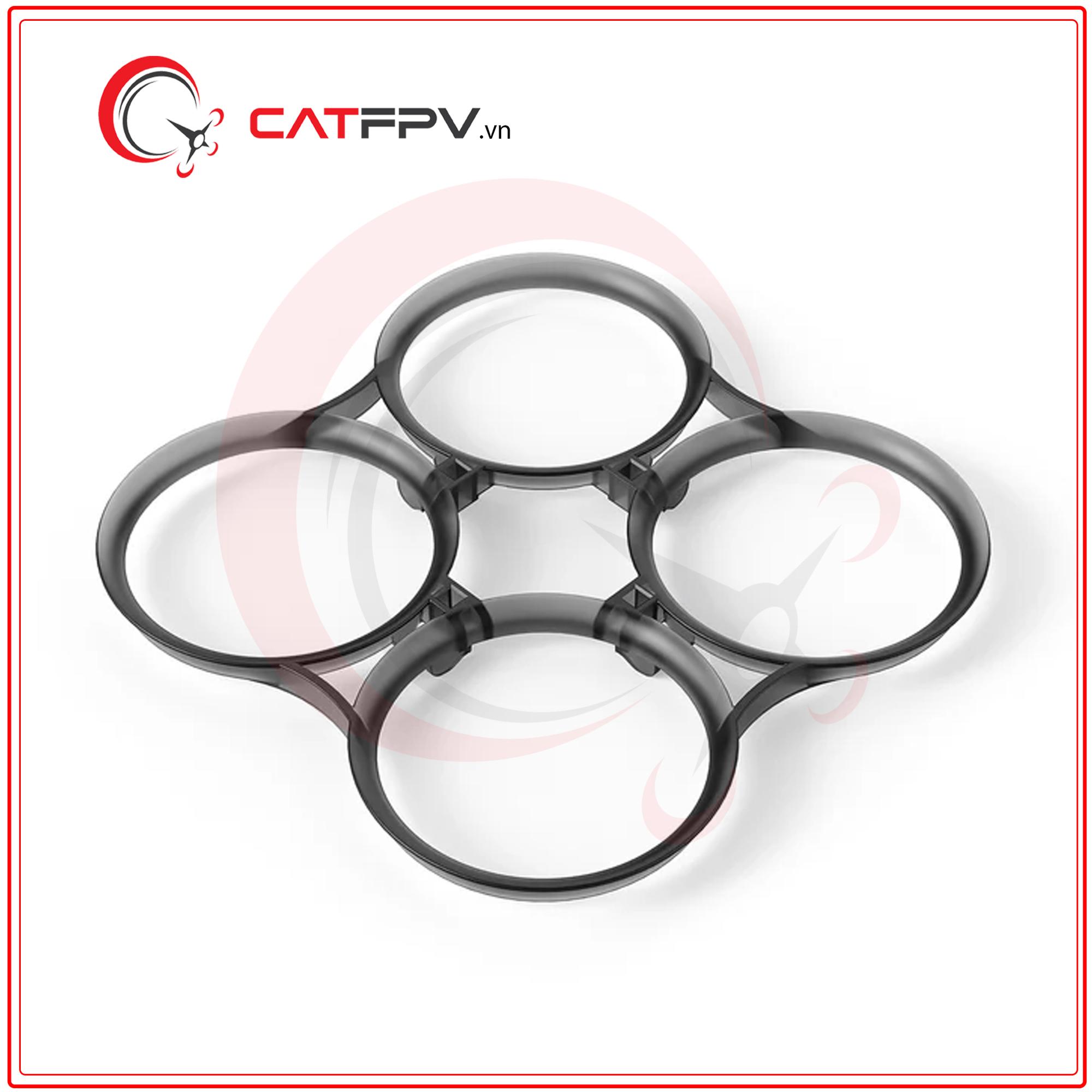

Whoop Duct: PC injection-molded translucent gray

Whoop Duct Diameter: 65.5mm
Battery Connector: Fixed XT30

Camera Installation Size: 20mm (compatible with 19mm)

HD VTX Installation Size: 25.5*25.5mm M1.6/20*20mm M2

HD VTX Antenna Mounting Hole Size: 4mm

Flight controller Mounting Hole Size: 25.5*25.5mm

Motor Mounting Hole Size: 4*M2 EQS ø9mm/ø12mm

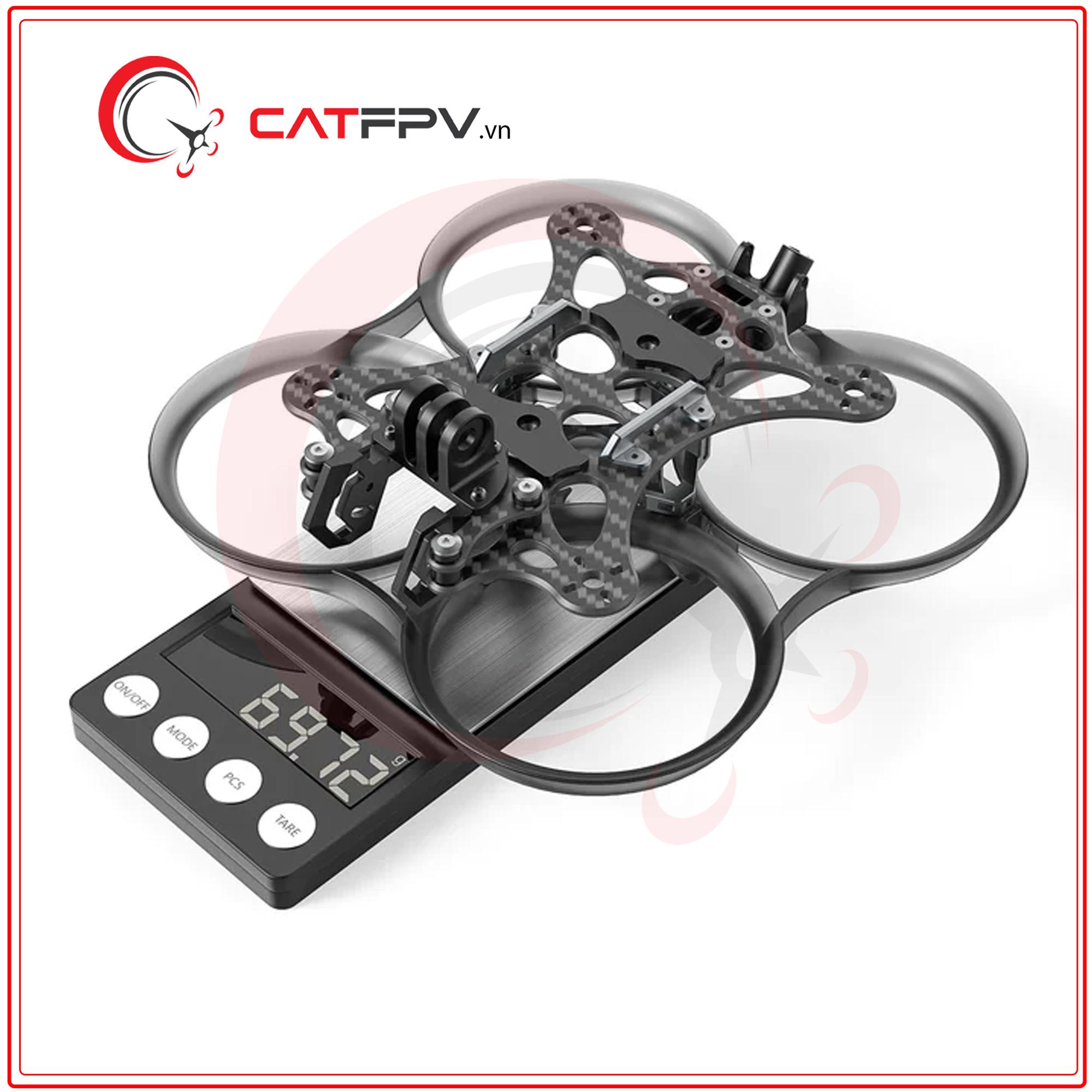

Weight: 70g

Pavo25 V2 Brushless Whoop Frame is the revolutionary Cinewhoop that the product team has come up with after spending countless hours applying aerodynamics. The whoop duct can enhance an additional 200g thrust and a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight while also accommodating mainstream HD VTX and Naked Action Cams, guaranteeing it is the smoothest, most powerful, and most responsive flight among all 2.5" cinewhoops.

Pavo25 V2 is specifically designed to seamlessly integrate with the DJI O3 Air Unit, addressing the previous limitation of Pavo25's inability to accommodate O3 compatibility.

The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.


Rocket engine-inspired duct design improves lateral stability and increases thrust by 200g compared to without a propeller guard, giving the Pavo25 V2 stronger power and a better flying feel.

The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.

The COB light strip assembly that can be switched on and off remotely allows pilots to enjoy flying in any scene.

Gimbal Carbon Plate: 2mm T700 carbon fiber


Whoop Duct: PC injection-molded translucent gray


Camera Installation Size: 20mm (compatible with 19mm)


HD VTX Installation Size: 25.5*25.5mm M1.6/20*20mm M2


Flight controller Mounting Hole Size: 25.5*25.5mm


Motor Mounting Hole Size: 4*M2 EQS ø9mm/ø12mm
