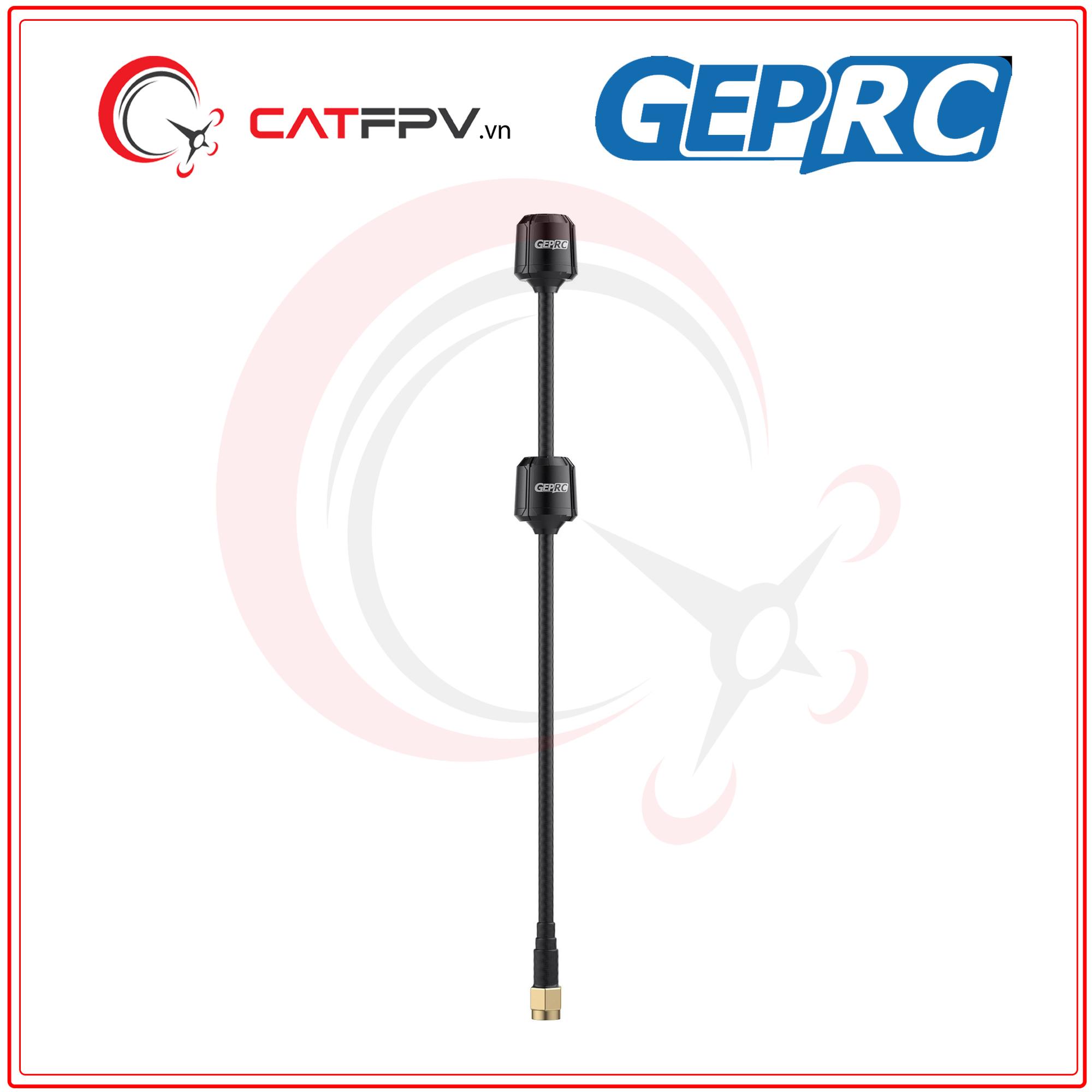

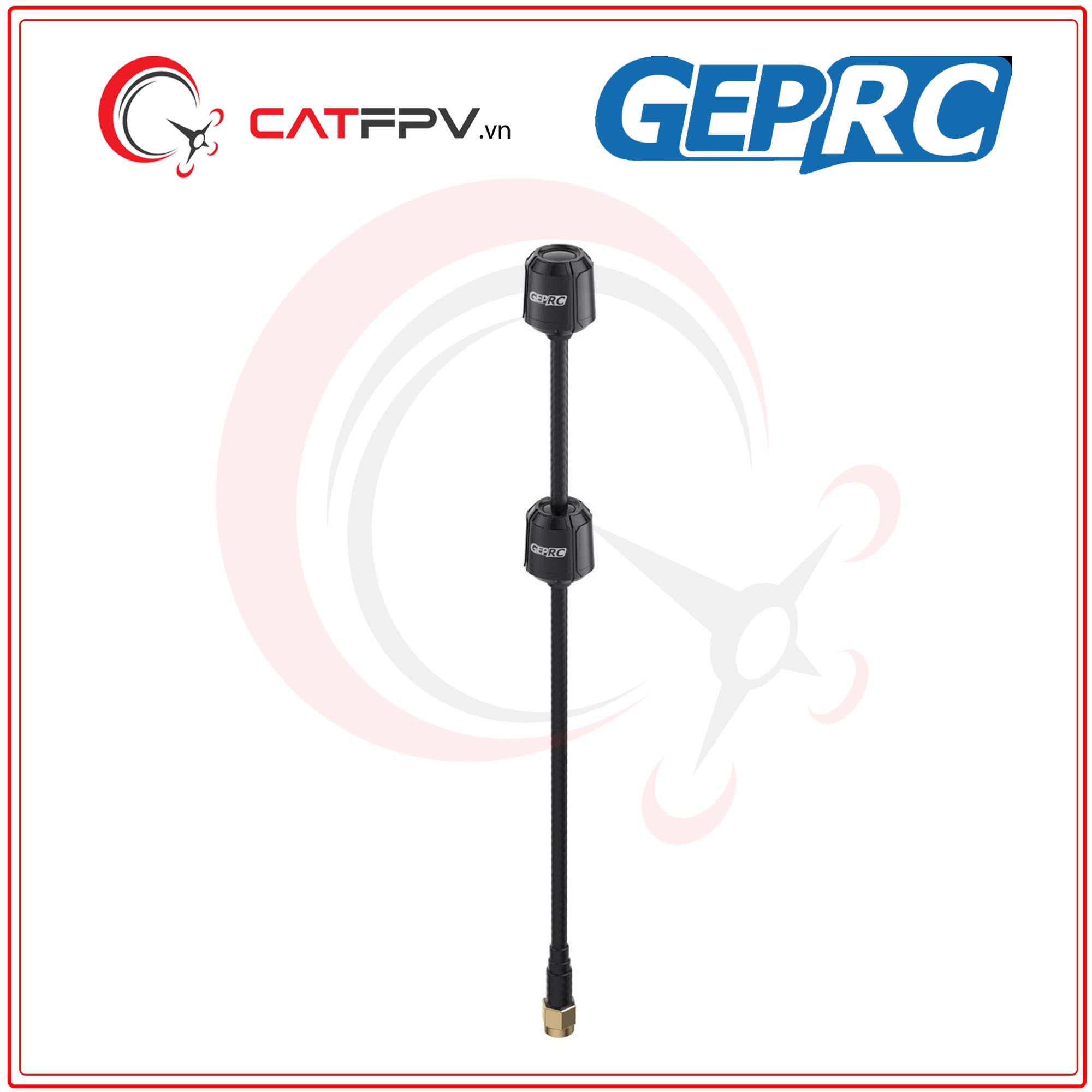

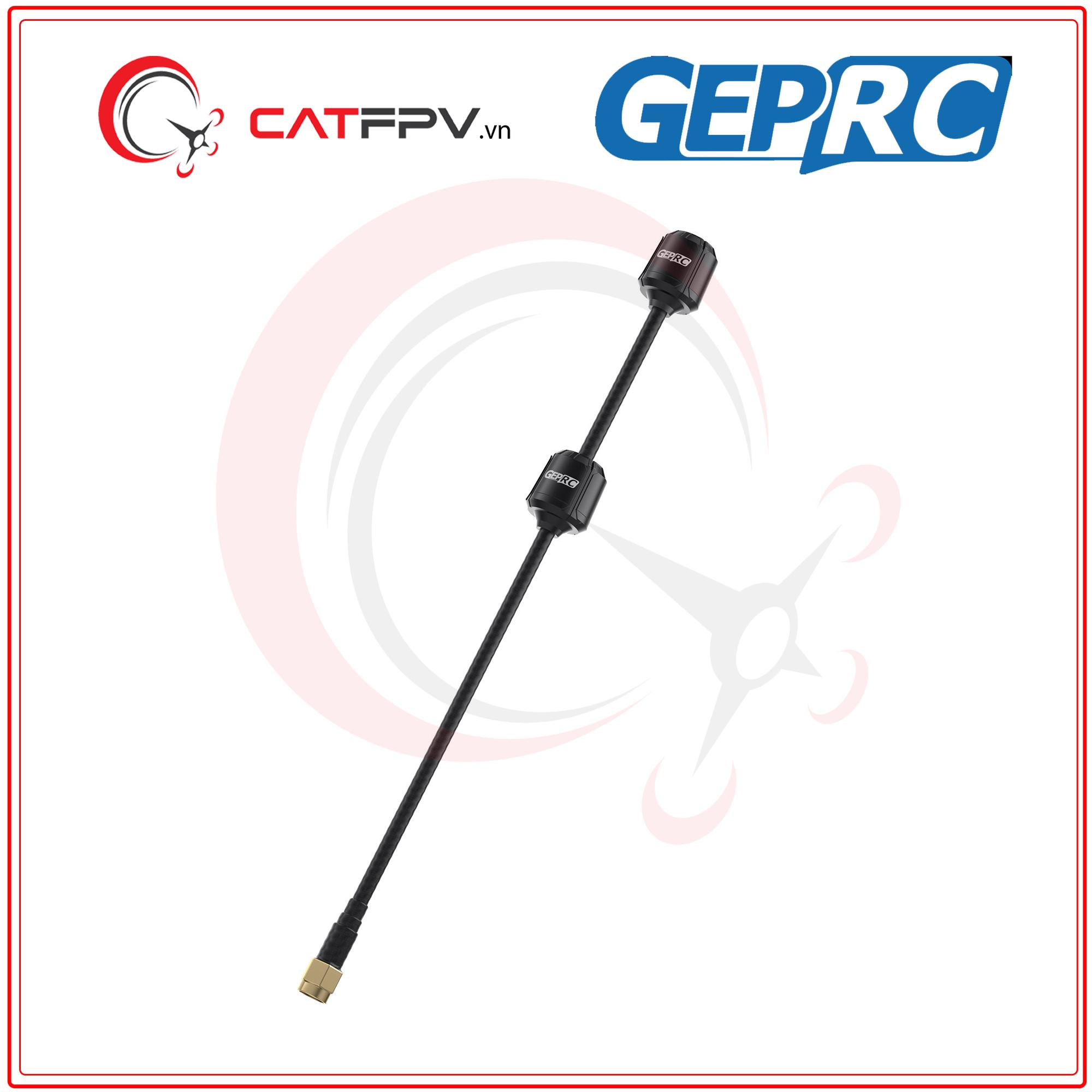

Name: GEPRC Momoda2 5.8G DUAL Antenna
Availability: InStock

CAT FPV

Summary
The GEPRC Momoda2 5.8G DUAL antenna incorporates a dual-core RF solution to enhance gain and expand coverage. Practical testing has demonstrated significantly improved directional compatibility. The Momoda2 5.8G DUAL antenna guarantees stable and reliable image transmission during flight, with extended transmission distance.
Features
Enhanced gain with dual-core RF technology.
 Ultra-low VSWR for improved transmission efficiency
 Adopts premium antenna interface
 Ultrasonic welding for tight and secure assembly
 Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards
Specifications
Model: GEPRC Momoda2 5.8G DUAL antenna
Center Frequency: 5.65GHz
Bandwidth: 5.3GHz～6GHz
Polarization: LHCP/RHCP
Gain: 3.8dbi
Axial Ratio: ≤3
VSWR: ≤1.43
Radiation Efficiency: 85%
Cross Polarization Suppression: -25dB
Length: 170mm+57mm
Design Compostion: FPC+PCB
Weight: 16.6g
Enclosure Material: ABS
Connector Type: SMA
Includes
1*Momoda 5.8G DUAL antenna
