Name: Mạch aio Hakrc 20a (2S-5S Lipo)
Availability: InStock

CAT FPV

Specifications：
Brand: HAKRC

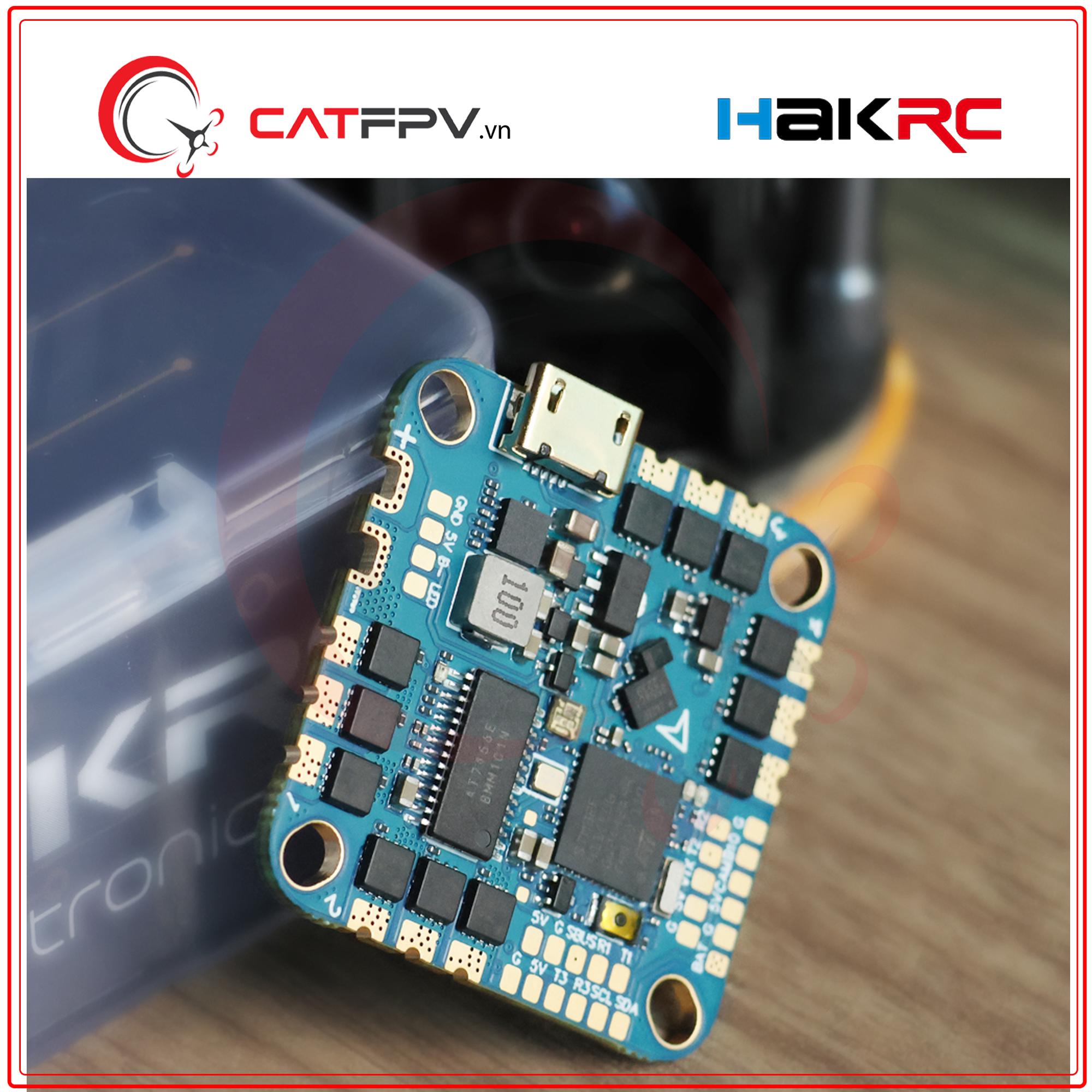

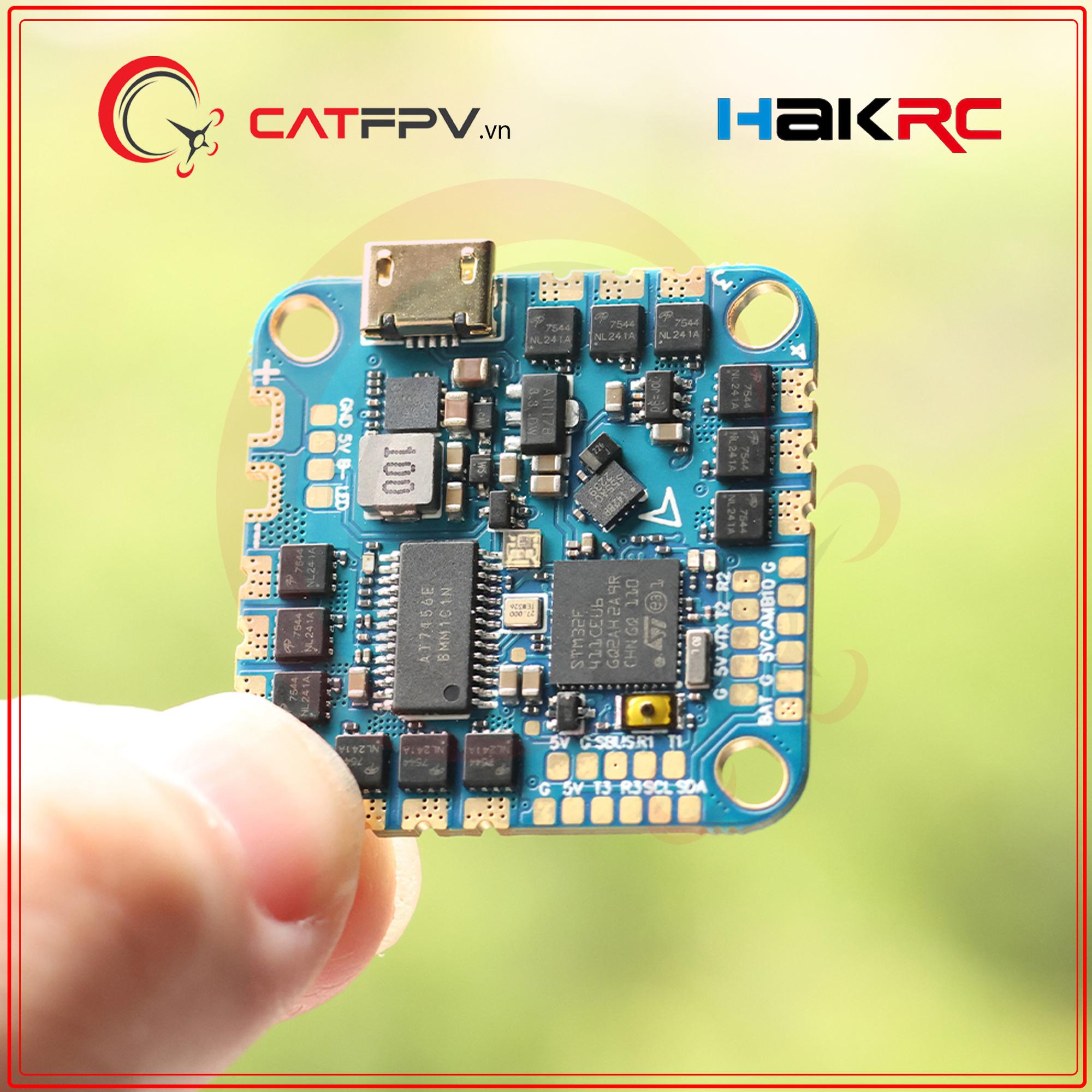

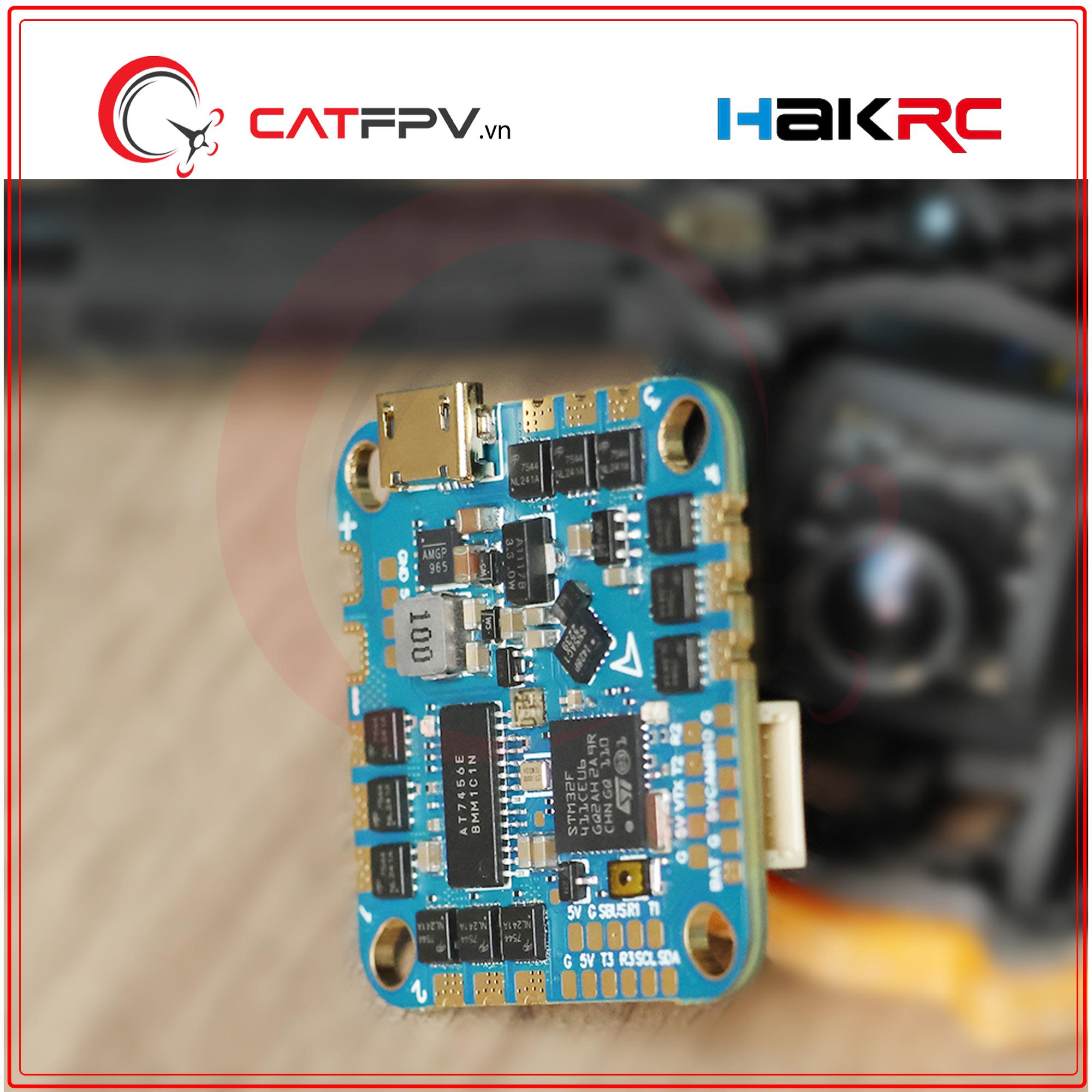

Item Name: HAKRC F411 20A AIO
Mounting Hole: 25.5*25.5mm/26.5*26.5mm
Weight: 8.5g
Package weight: 50g
Size: 31*31mm

Flight Controller:
CPU: STM32F411CEU6
IMU: ICM42688
OSD: AT7456E
Barometer: SPL06
LED: Suppotr programmabled such as WS2812
Current meter: Yes
Firmware: HAKRC F411D
Support receiver: Frsky/ Futabas/ Flysky/ TBS Crossfire/ DSMX:DSM2

ESC:
Firmware: BLHELI_ S (G- H-20)
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150，Dshot300，Dshot600
Input: 2S-5S Lipo
Con. Current: 20A
Peak Current: 25A

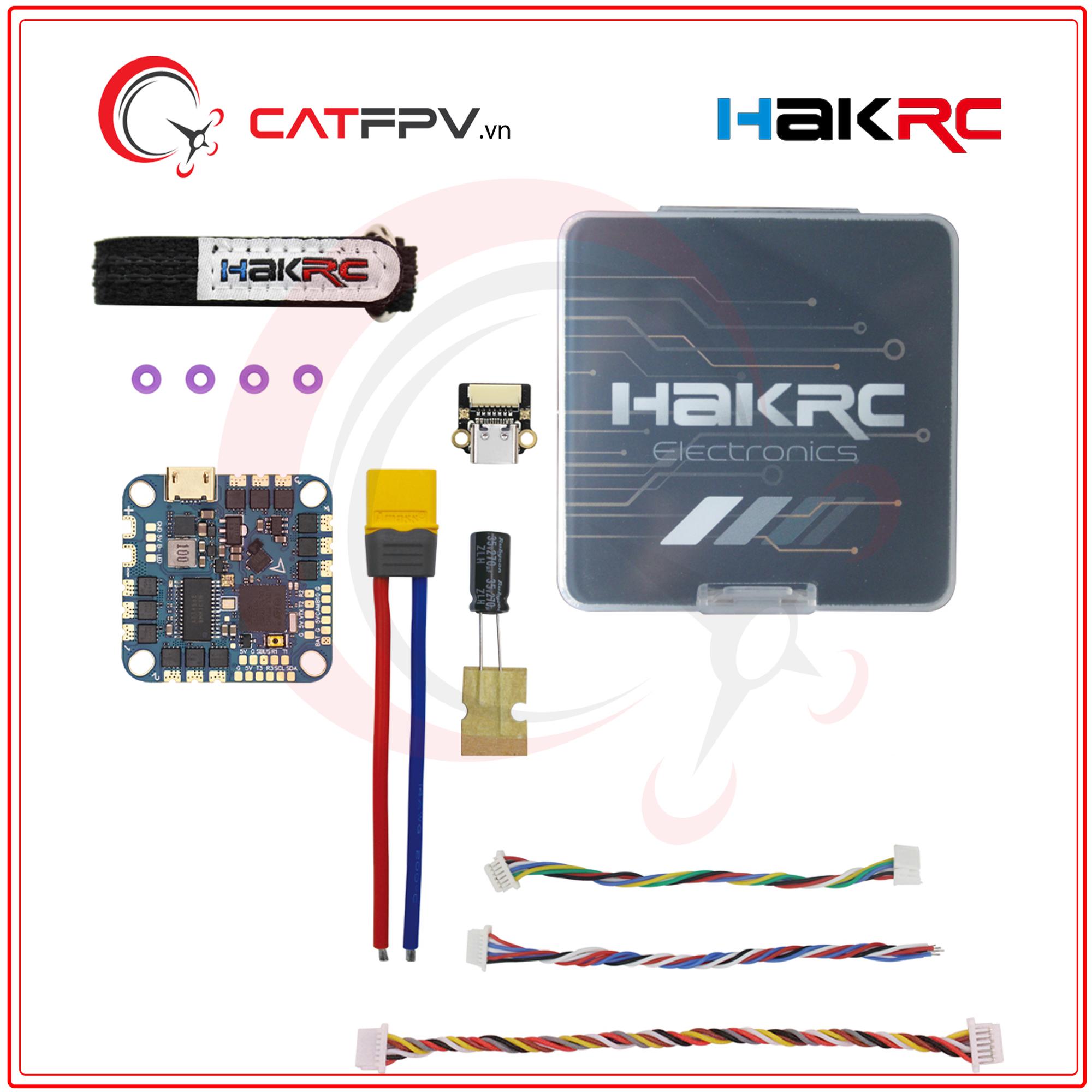

Package Included:

1x F411 20A AIO
4x M2 Shock absorber
1x XT30 power cord
1x Small bandage
1x Type-C USB
1x USB cable
1x 270uf/35V capacitor
1x DJI FPV Cable
1x DJI O3 Air Unit 3-in-1 Cable
1x Instructions
