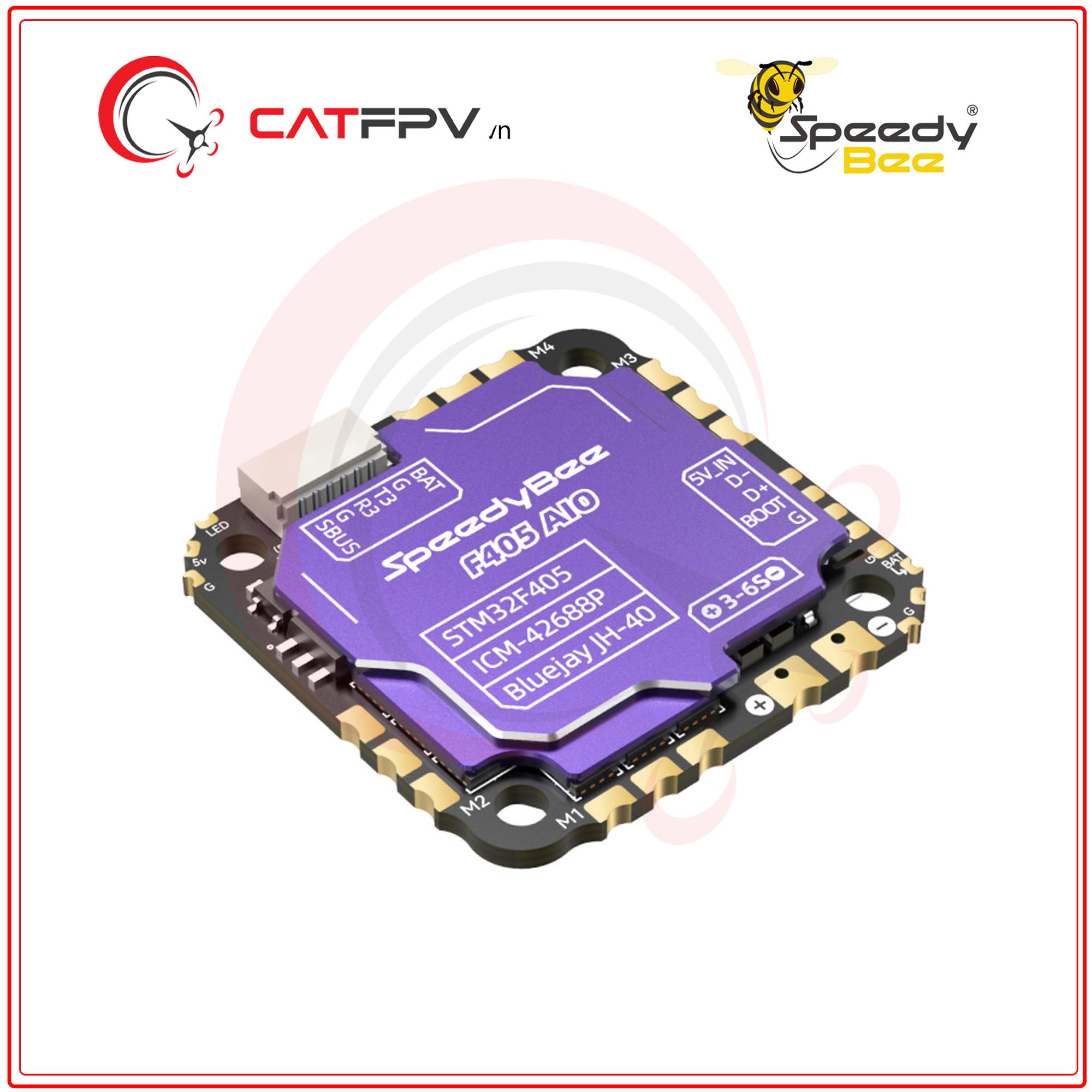

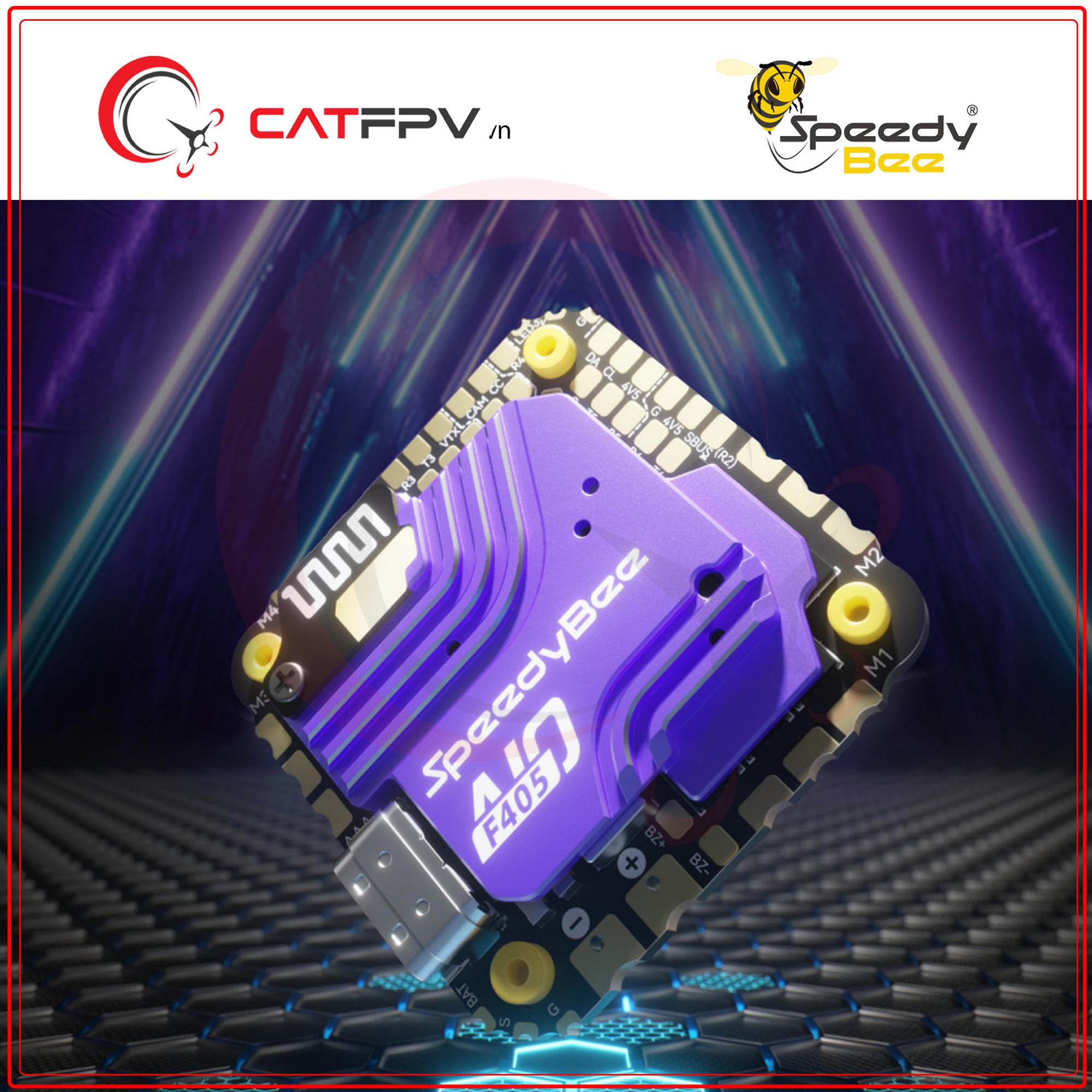

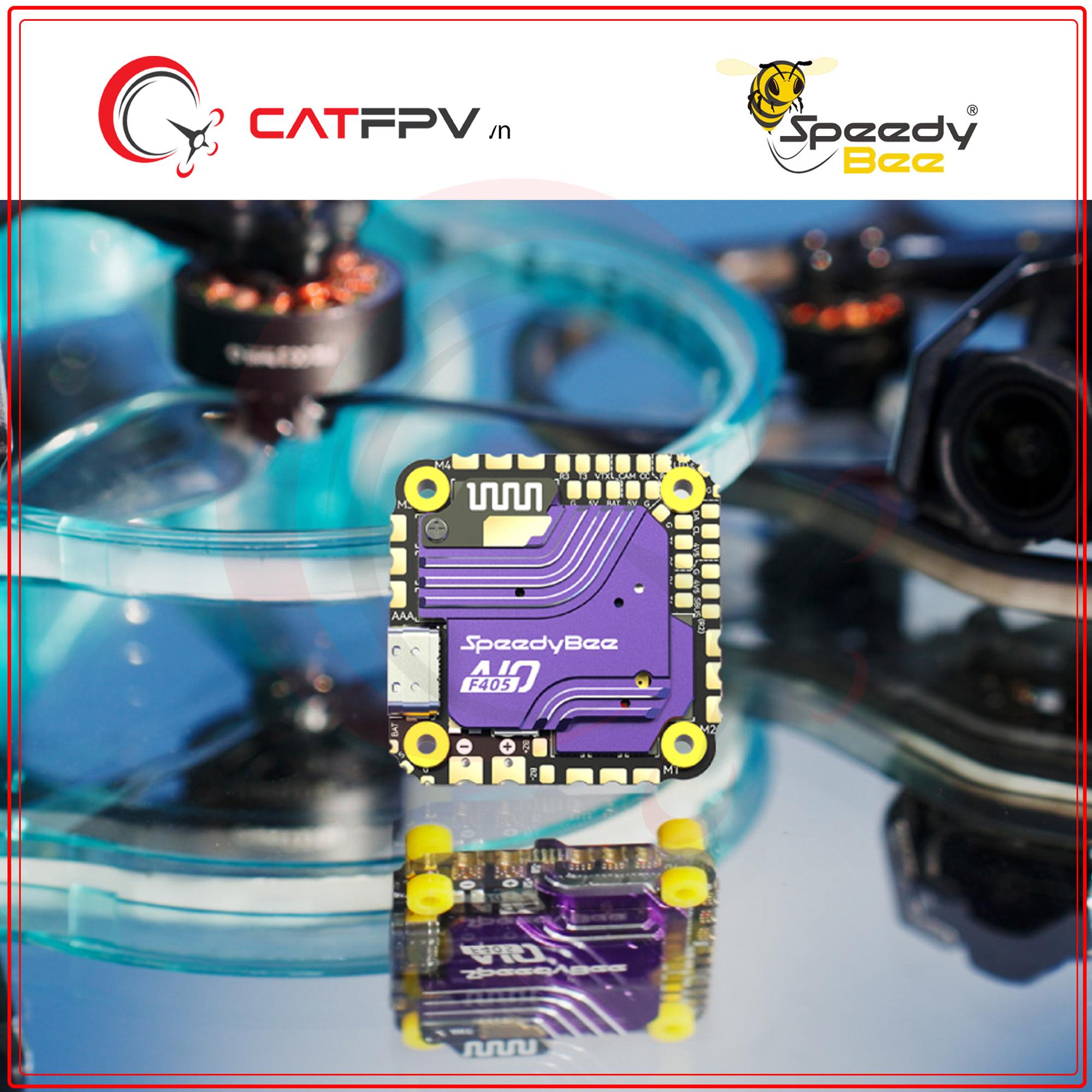

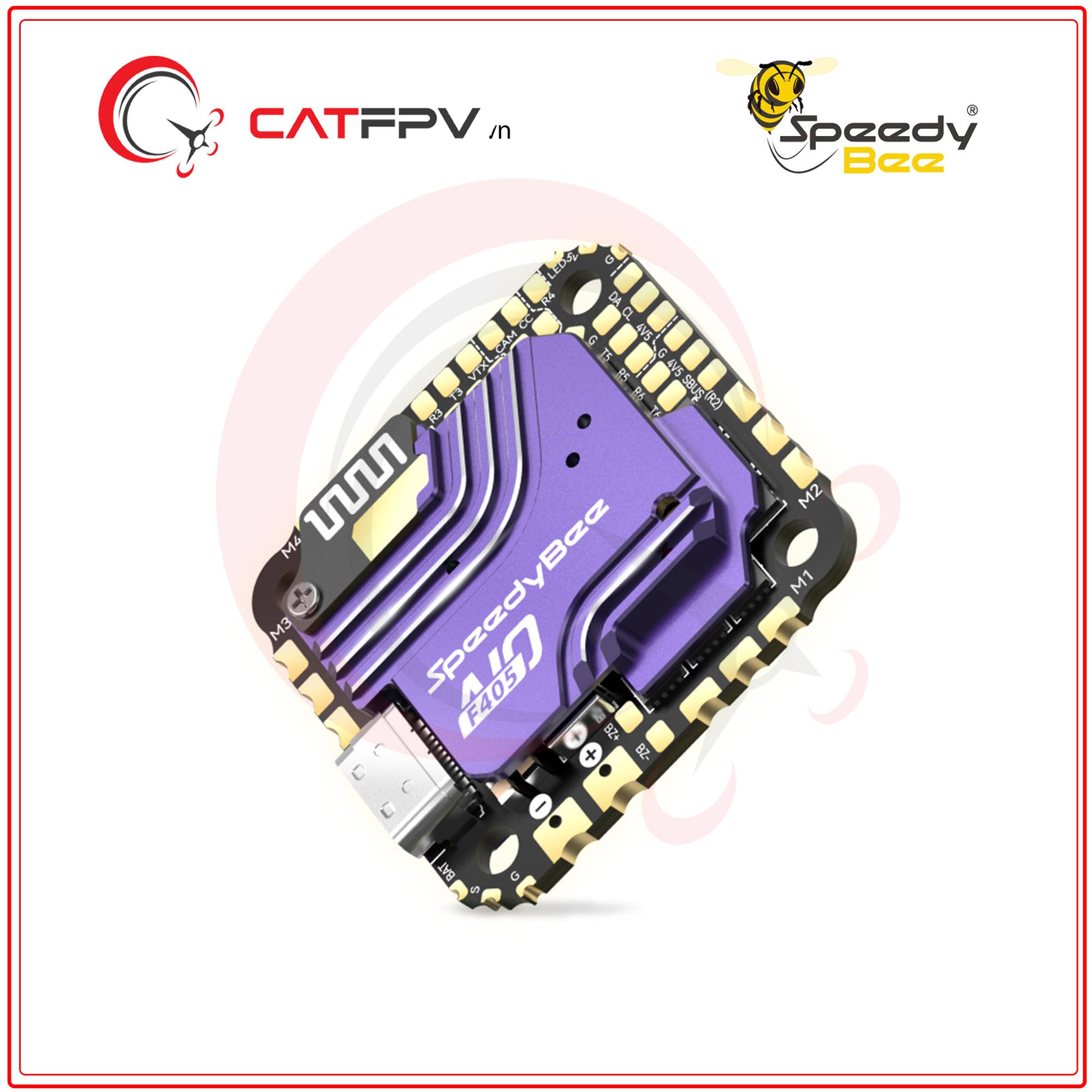

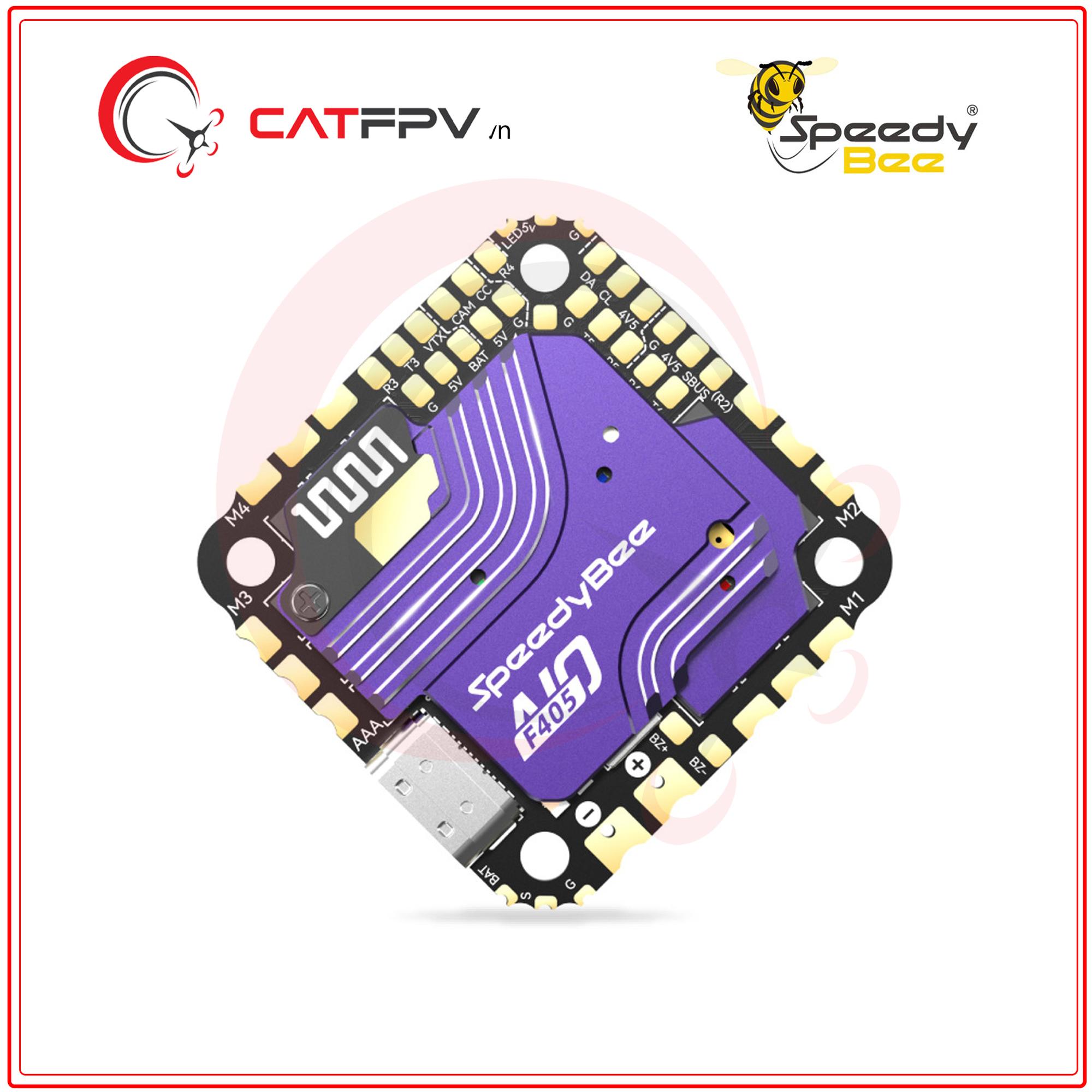

Name: Mạch bay Speedybee F405 40A BLS
Availability: InStock

CAT FPV

Flight Controller
Product Name	SpeedyBee F405 AIO
MCU	STM32F405
Gyro	ICM-42688P
USB Port Type	Type-C
Barometer	SPA06-003
OSD	Supported
Bluetooth BLE	Supported, Bluetooth speed enhancement – 2.0
Wireless Flight Controller Firmware Update	Supported (no need to press physical BOOT button)
Wireless Download & BlackBox Analysis	Not supported
DJI Air Unit Connection Method	Supports both 6-pin direct insertion and soldering
6-pin DJI Sky Port Direct Insertion	Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order
Flash (for BlackBox)	8MB
Betaflight CC Pads (Camera Parameter Adjustment)	Supported
Input Voltage	3S-6S LiPo battery
4V5 Output	Two 4V5 outputs; total current 1A
5V BEC Output	Three 5V outputs; total current 2A; shared with 4V5
9V BEC Output	None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A
MOTOR	M1-M4
UART	4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])
ESC Telemetry	None
I2C	Supported
LED Pads	Supported, used to control WS2812 LED lights
Buzzer Pads	Supported, BZ+ and BZ- pads
BOOT Button	Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery
RSSI Pads	None
SmartPort	Not supported
Supported Flight Controller Firmware	BetaFlight (Default), INAV
Firmware Target Name	SPEEDYBEE F405AIO
Mounting	25.5 x 25.5mm, 2mm hole diameter
Dimensions	33.0mm (length) x 33.0mm (width) x 8mm (height)
Weight	13.6g (including CNC)
ESC
Product Name	SpeedyBee F405 AIO
Input Voltage	3-6S LiPo battery
Continuous Current	40A
Burst Current	45A (10s)
ESC Protocol	Supports DSHOT600/300; other protocols may cause severe errors, please use with caution.
Output Voltage	VBAT battery voltage (used to power the flight controller)
Current Sensor	Supported (Scale = 254, Offset = 0)
Firmware	Bluejay JH-40 48kHz

Bluetooth BLE	Supported, Bluetooth speed enhancement – 2.0

Wireless Flight Controller Firmware Update	Supported (no need to press physical BOOT button)

Wireless Download & BlackBox Analysis	Not supported

DJI Air Unit Connection Method	Supports both 6-pin direct insertion and soldering

6-pin DJI Sky Port Direct Insertion	Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order

Betaflight CC Pads (Camera Parameter Adjustment)	Supported

4V5 Output	Two 4V5 outputs; total current 1A

5V BEC Output	Three 5V outputs; total current 2A; shared with 4V5

9V BEC Output	None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A

UART	4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])

LED Pads	Supported, used to control WS2812 LED lights

BOOT Button	Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery

Supported Flight Controller Firmware	BetaFlight (Default), INAV

Mounting	25.5 x 25.5mm, 2mm hole diameter

Dimensions	33.0mm (length) x 33.0mm (width) x 8mm (height)

ESC Protocol	Supports DSHOT600/300; other protocols may cause severe errors, please use with caution.

Output Voltage	VBAT battery voltage (used to power the flight controller)

Current Sensor	Supported (Scale = 254, Offset = 0)
