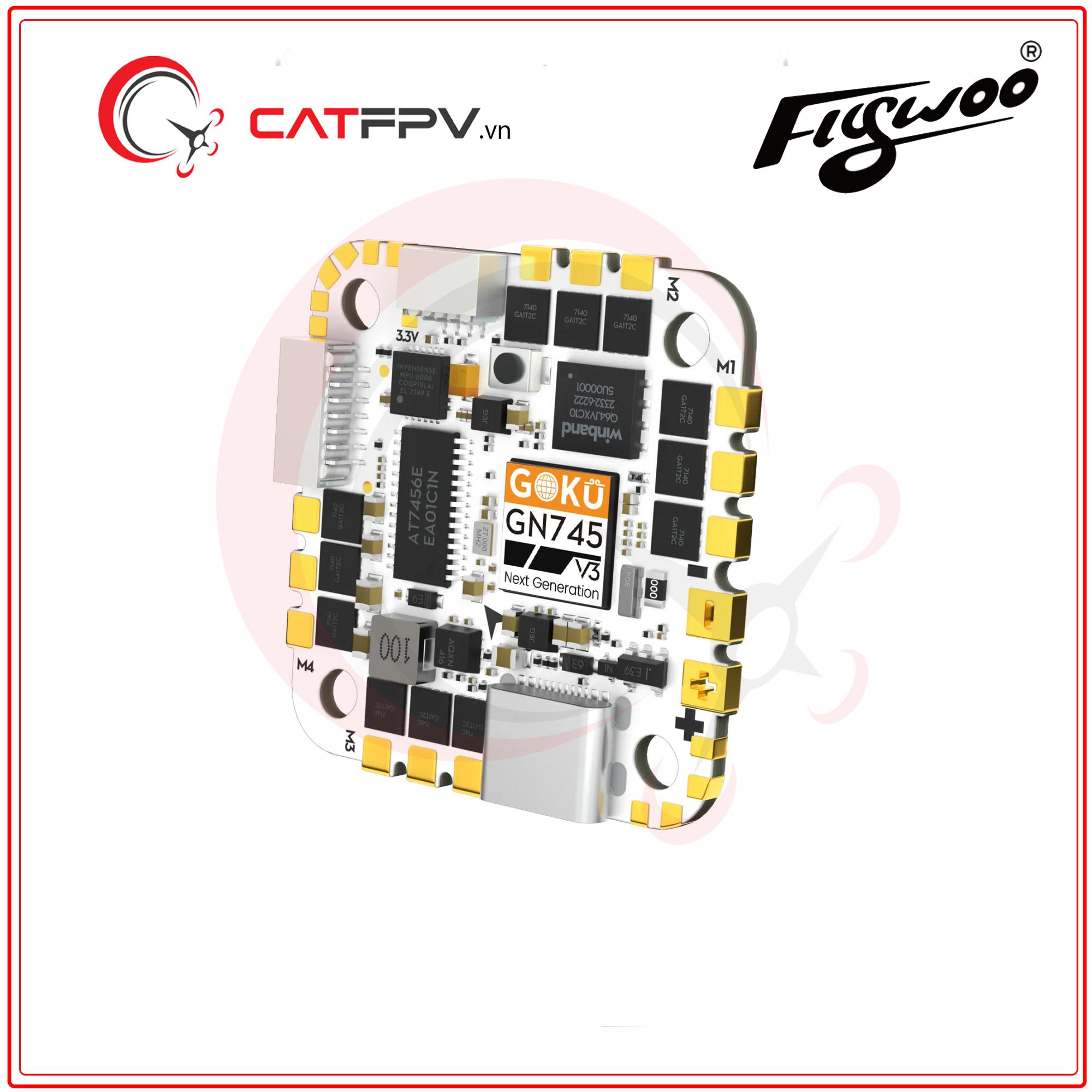

Name: Mạch Điều Khiển Flywoo GOKU GN 745 45A AIO 32bit (MPU6000 ) V3
Availability: InStock

CAT FPV


Specifications：

BF Flight Controller Firmware: FLYWOOF745AIO
INAV Firmware: FLYWOOF745
Ardupilot Firmware: FLYWOOF745
MCU: STM32F745 32-bit processor,216MHz, 1MB Flash
IMU: MPU6000 (SPI)
Barometer: SPL06
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
7 hardware UARTS (UART1,2,3,4,5,6,7)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.
Onbord 16Mbytes for Blackbox logging
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max
Dimensions: 33.5x33.5mm
Mounting Holes: Standard 25.5/26.5mm square to center of holes
Weight: 9.4g
Onboard 4in1 ESC
Support AM32
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
Input Voltage: 2-6S Lipo
Continuous Current: 45A
Firmware: GOKU_F4A32_PRO
In the Box
1x UNICON UPL Capacitor 25V 470UF
4x M2x6.6 Shock-Absoring Ball
4x M2 Rubber Ring
1x XT30 Power Cable
1x DJI O3 Connection Cable
1x VTX & Camera Connection Cable
1x Receiver Connection Cable
1x GPS Compass Connection Cable
