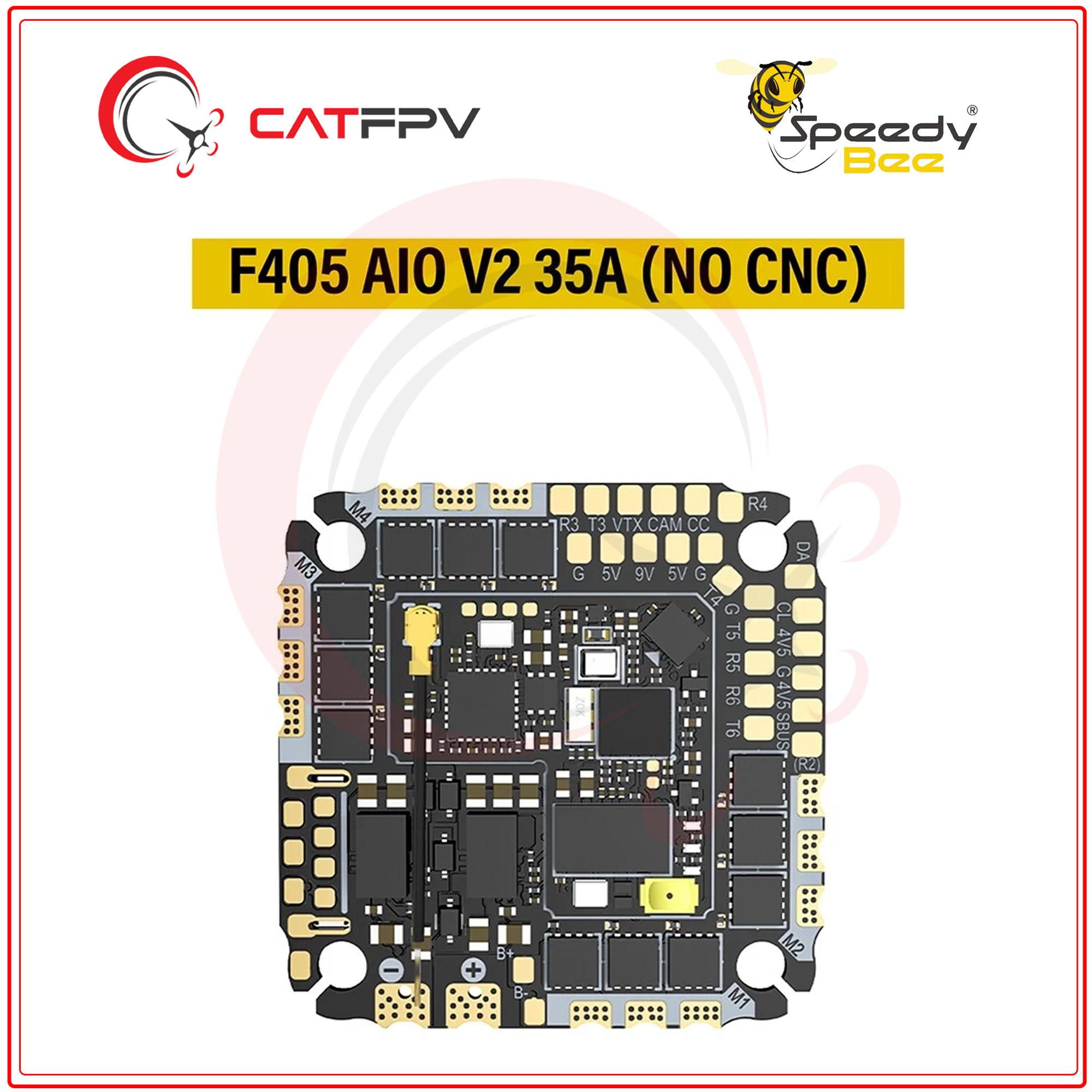

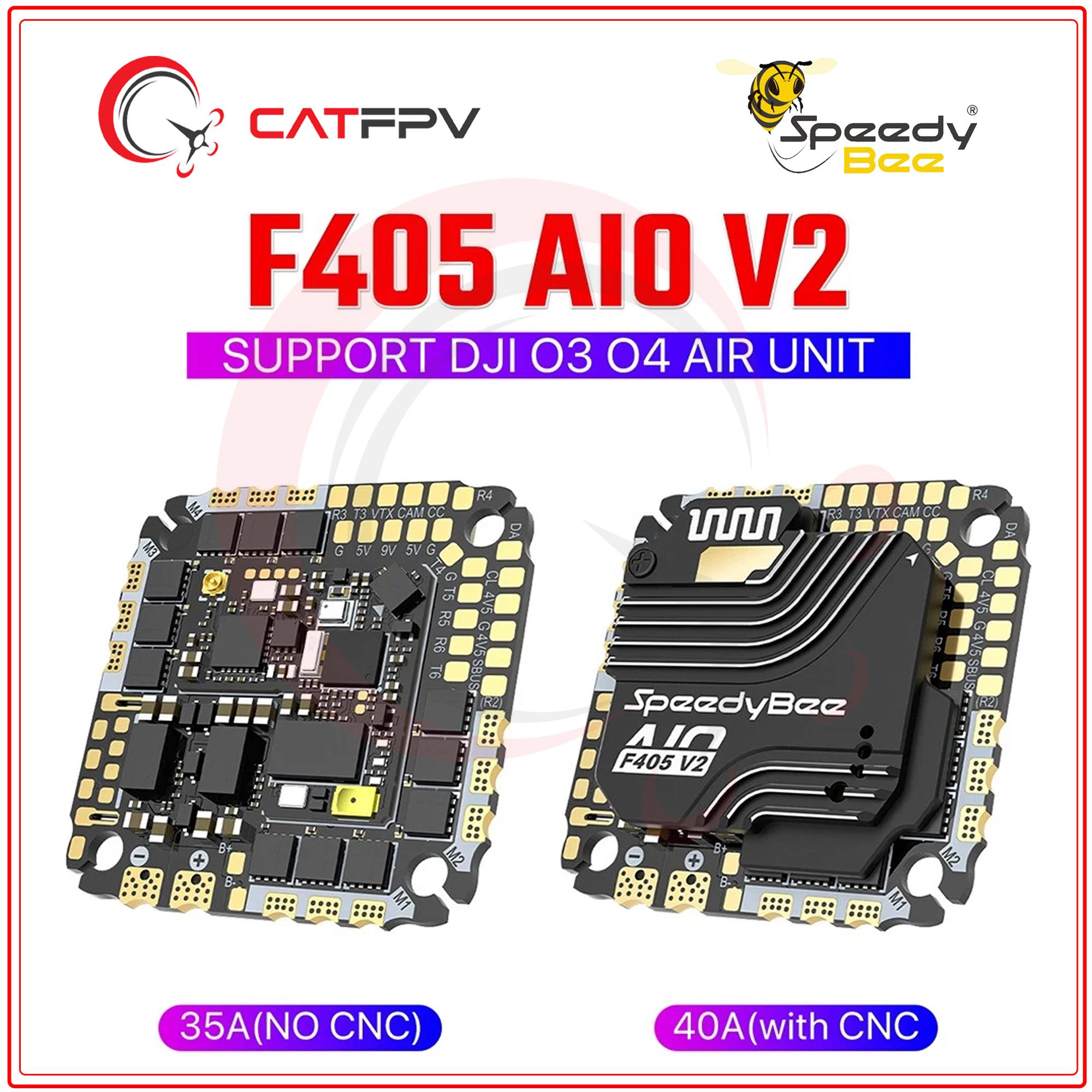

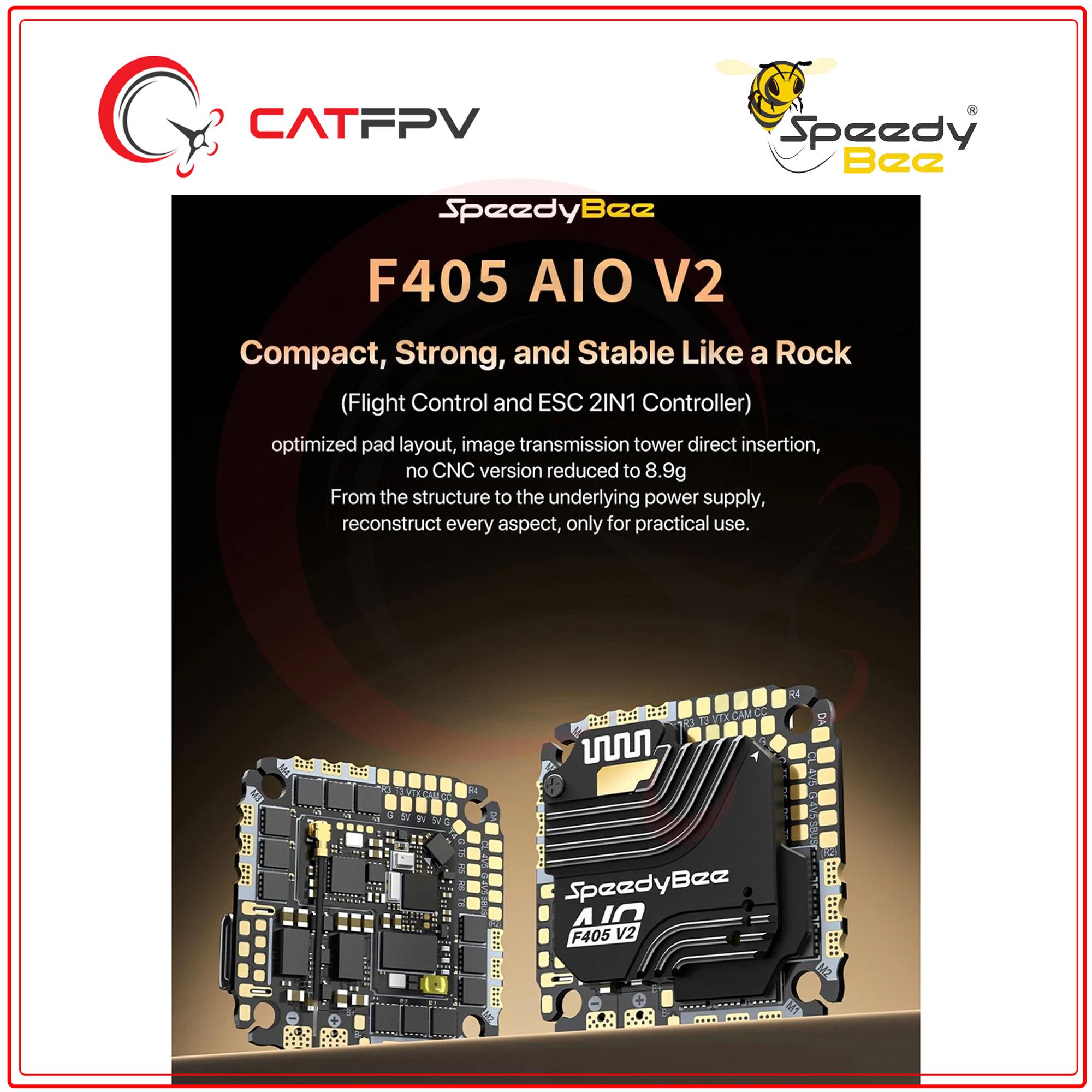

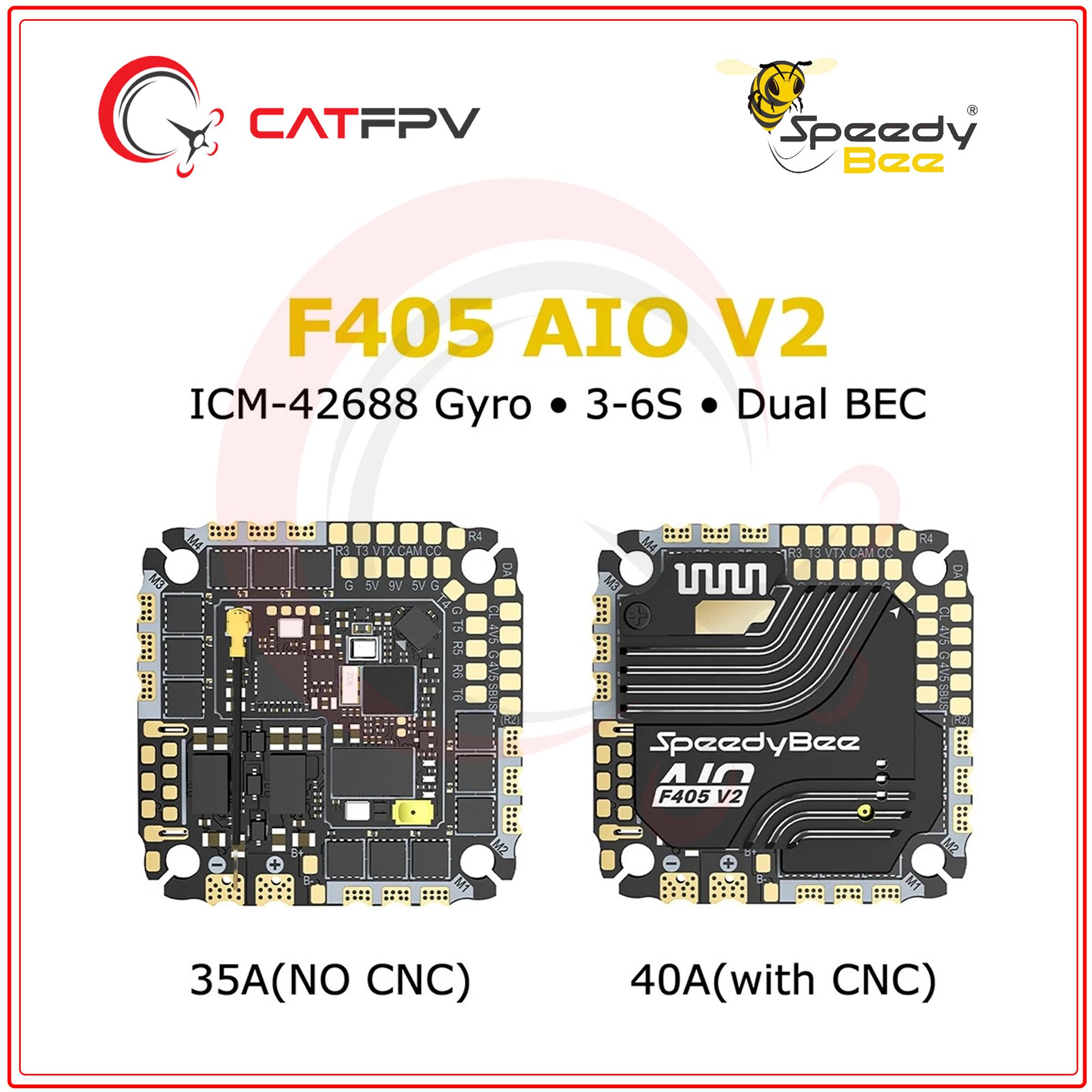

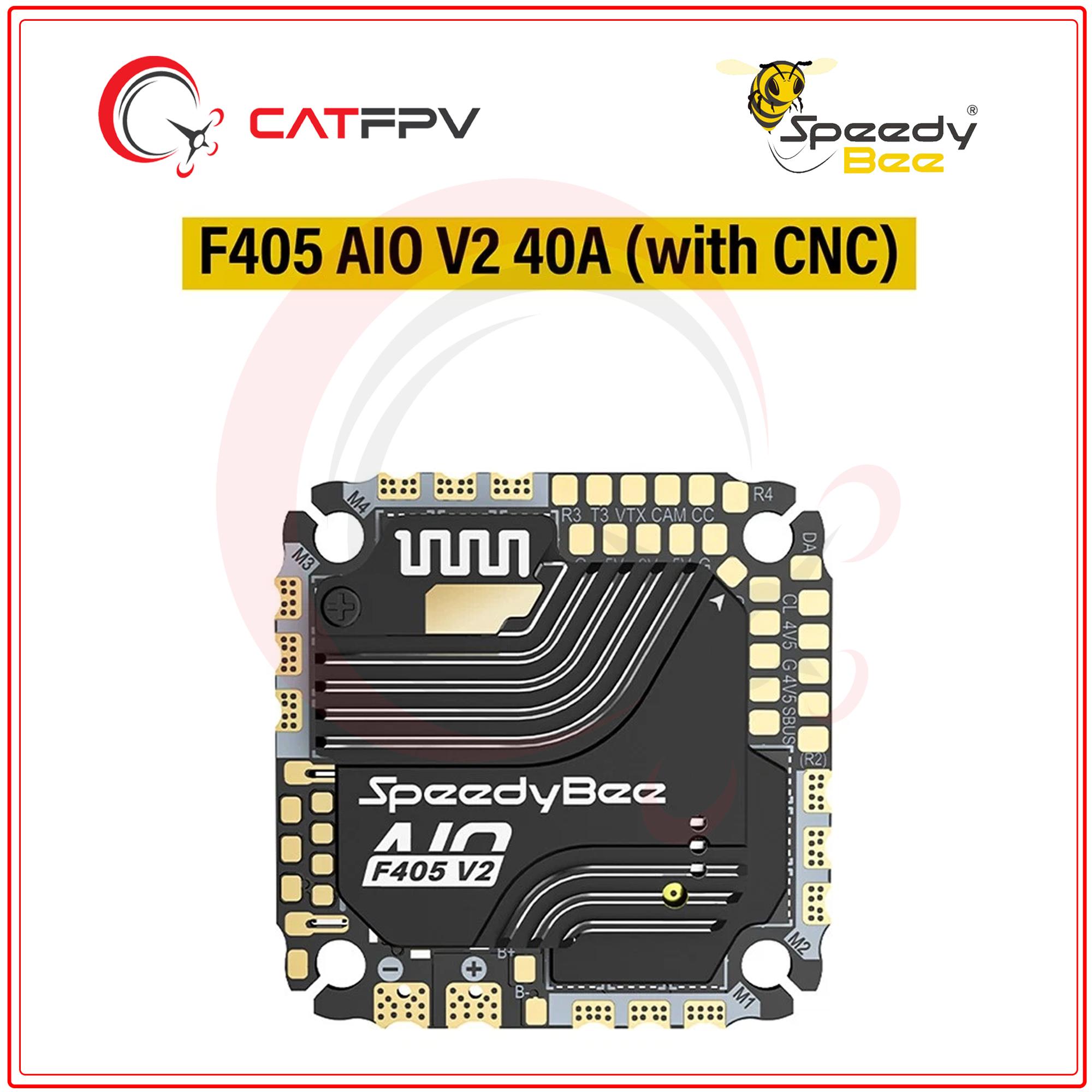

Name: Speedybee F405 35A/40A V2 (3-6S)
Availability: InStock

CAT FPV

F405 AIO V2 Specifications:

Product Name: SpeedyBee F405 A1O V2

Main control chip: STM32F405

Gyroscope: ICM-42688P

USB interface type: Type-C

Barometer: SPA06-003

OSD: Support

Bluetooth BLE: Supports

Wireless Flight Control Firmware Update: Supports

DJlAir Unit connection methods: 6PIN socket direct insertion and soldering

Black box storage: 8MB

Betaflight CC solder pads: support

Input voltage: 3S-6S lipo battery

4V5 output: 1A

5V BEC output: 1.5A

9V BEC output: 1.5A

MOTOR: M1-M4

UART serial port: Four sets of fully functional serial ports (UART3, UART4, UART5, UART6+SBUS [R2])

Electric tuning test input: none

I2C: Support

LED pads: support

Beehive pad: Support

BOOT key: Support

RSSI pad: None

SmartPort: not supported

Supported flight control firmware types: betaflgiht

Firmware Target Name: SPEEDYBEEF405AIOV2

Installation hole position: 25.5mm x 25.5mm, 2mm aperture

Size: Standard version: 33x33x7mm; CNC version: 33x33x8mm

Weight: Standard version: 8.99; CNC version: 12.8g

----

ESC Specifications:

Product Name: SpeedyBee F405 AIO V2

Input voltage: 3-6S

Nominal current: Standard version: 35A single channel, 140A four channel; CNC version: 40A single channel, 160A four channel

Peak current: Standard version: 40A V, 160A quad; CNC version: 45A single channel, 180A four channel

ESC protocol: only supports DSHOT600/300, other protocols may cause serious errors.

Output voltage: VBAT battery voltage (used to power the flight control)

Ammeter: Supports (Scale=88, Offset=0)

ESC firmware: Factory firmware Bluejay JH-40 48Khz



Package contents:

1 * F405 AIO V2

1 * Welding practice board

4 * M2 7.7mm shock-absorbing silicone sleeve

4 * M2 8.4mm shock-absorbing silicone sleeve

1 * DJI Sky End Connection Cable [SH1.0 6pin * 80mm]

1* BEC

1 * Type-C extension module

1*  Type-C extension module 4-pin * 80mm ribbon cable

1 * User Guide

2 * Transparent heat shrink tubing

1 * Meteor light strip BEC connection cable view 80MM

1 * Power Expansion Board

4 * fixing screw M2 * 20mm

4 * fixing screw M2 * 12 mm

1 * 35V 470UF electrolytic capacitor

1 * Electric customer heat shrink tubing
