Name: Tháp mạch GEPRC TAKER F722 BLS 60A
Availability: InStock

CAT FPV

Specifications

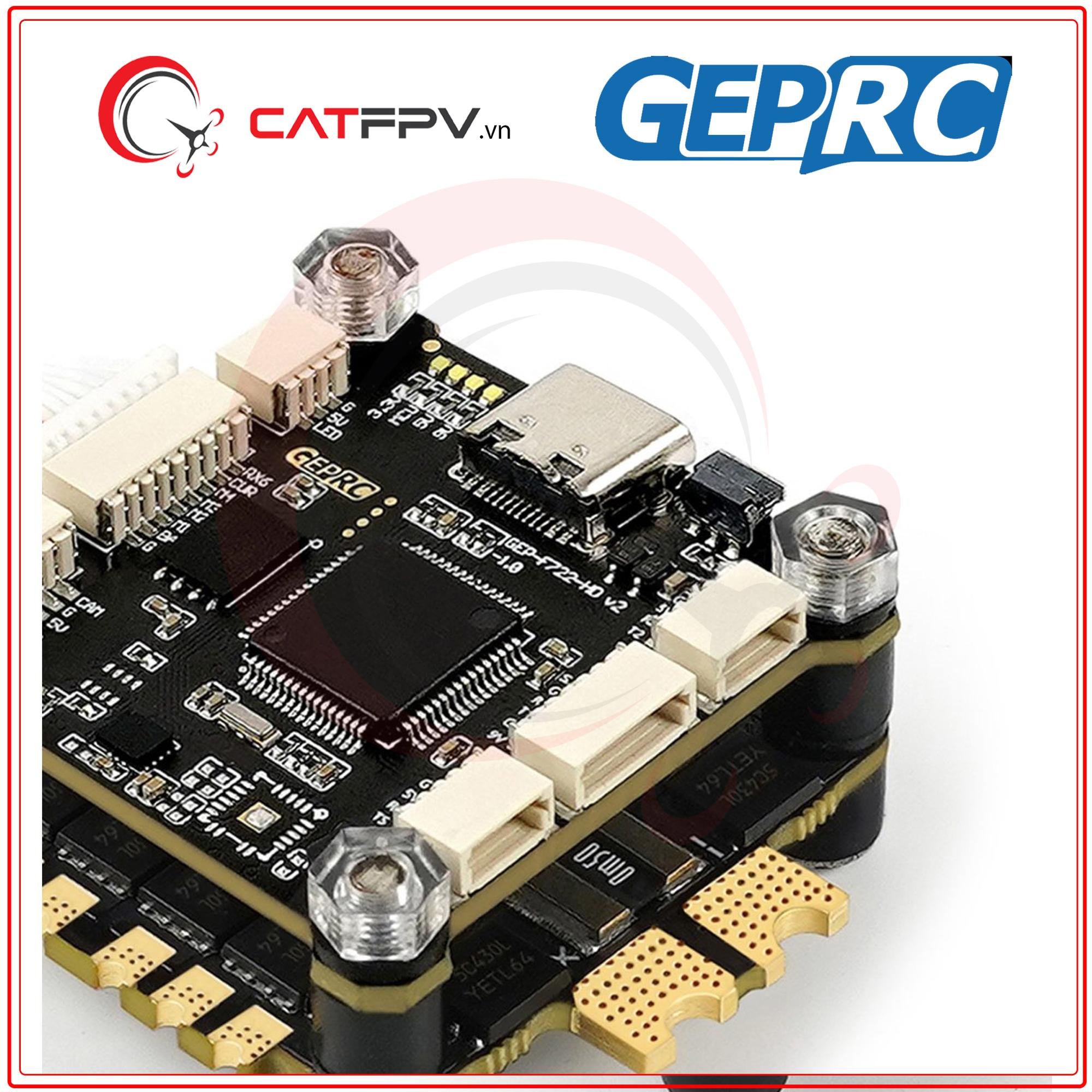

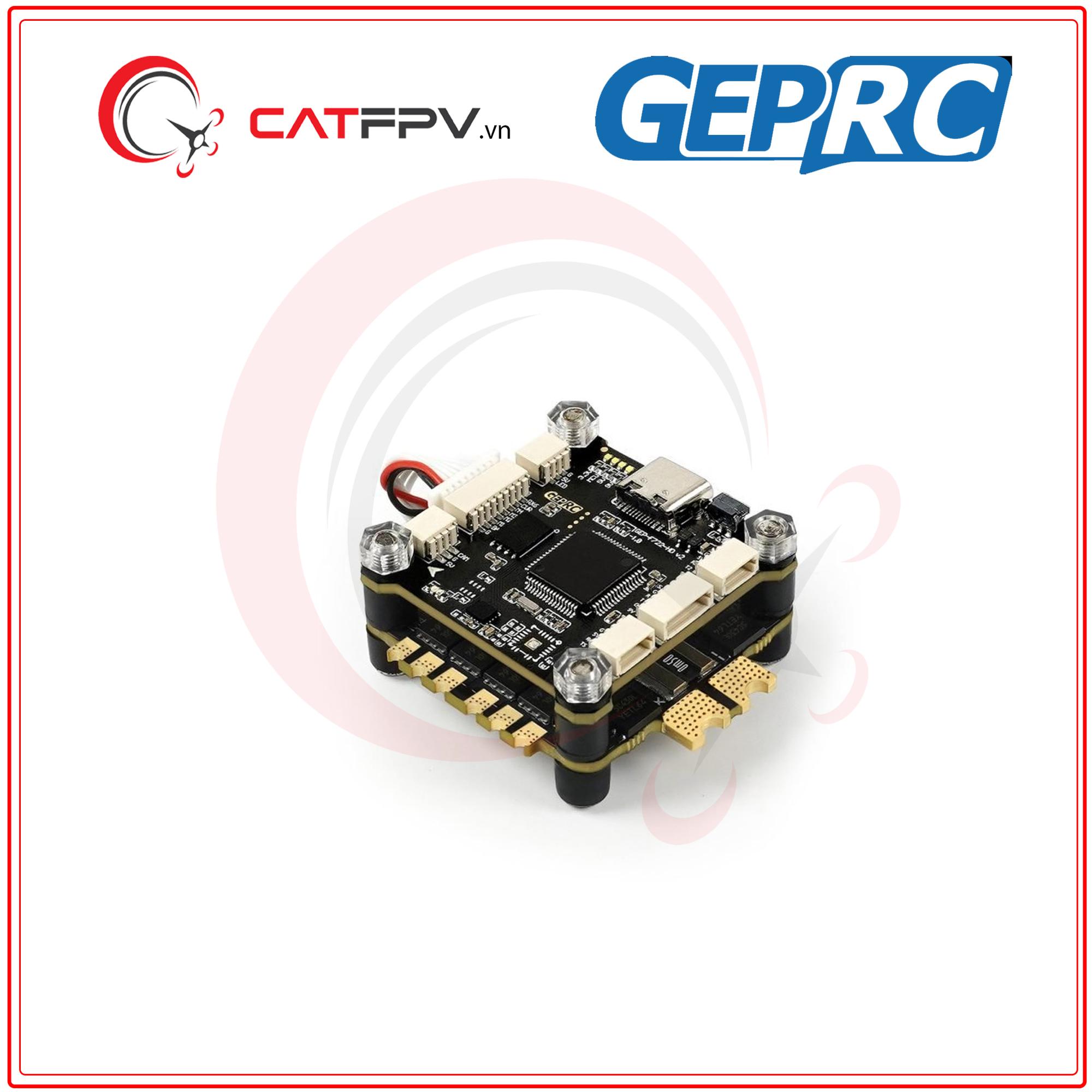

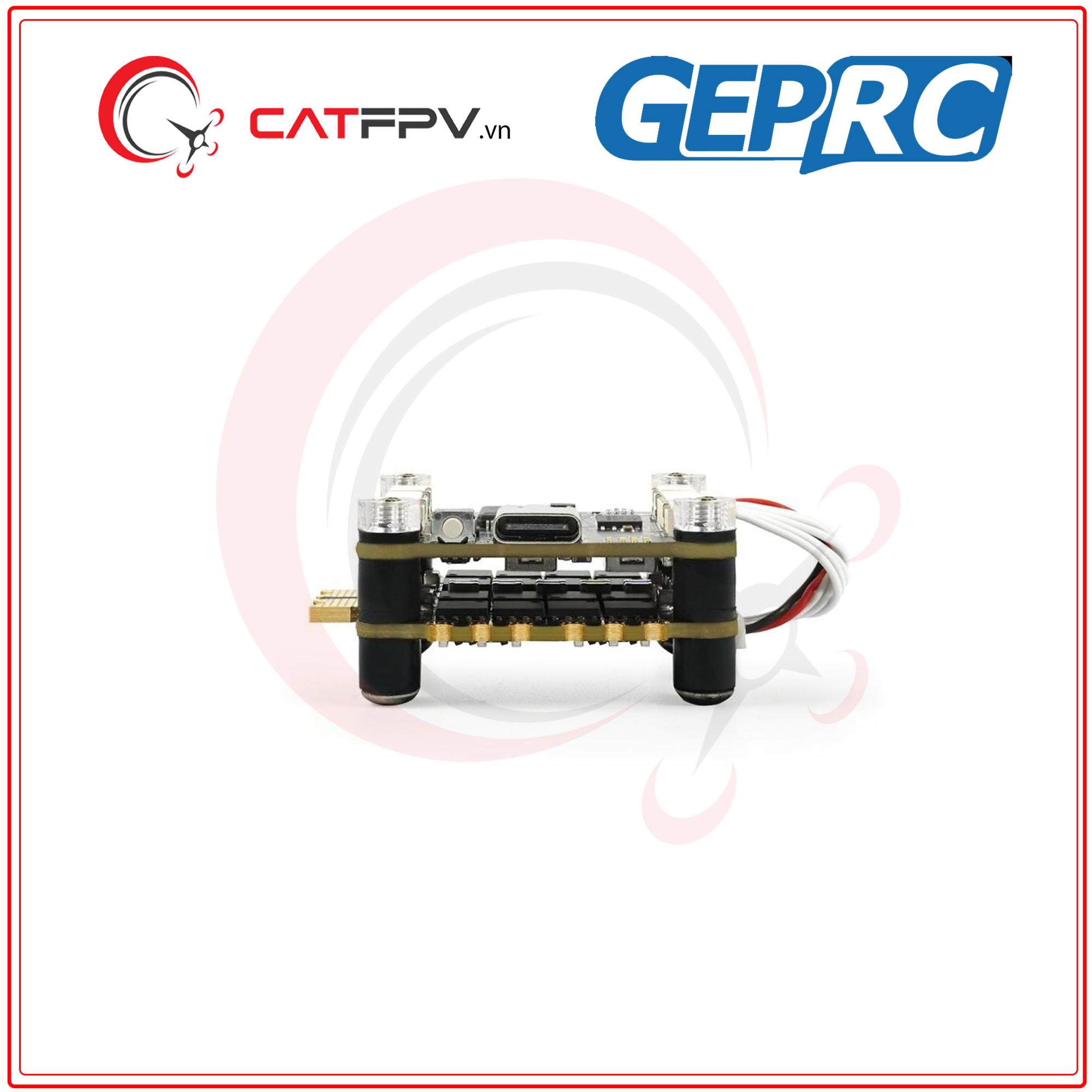

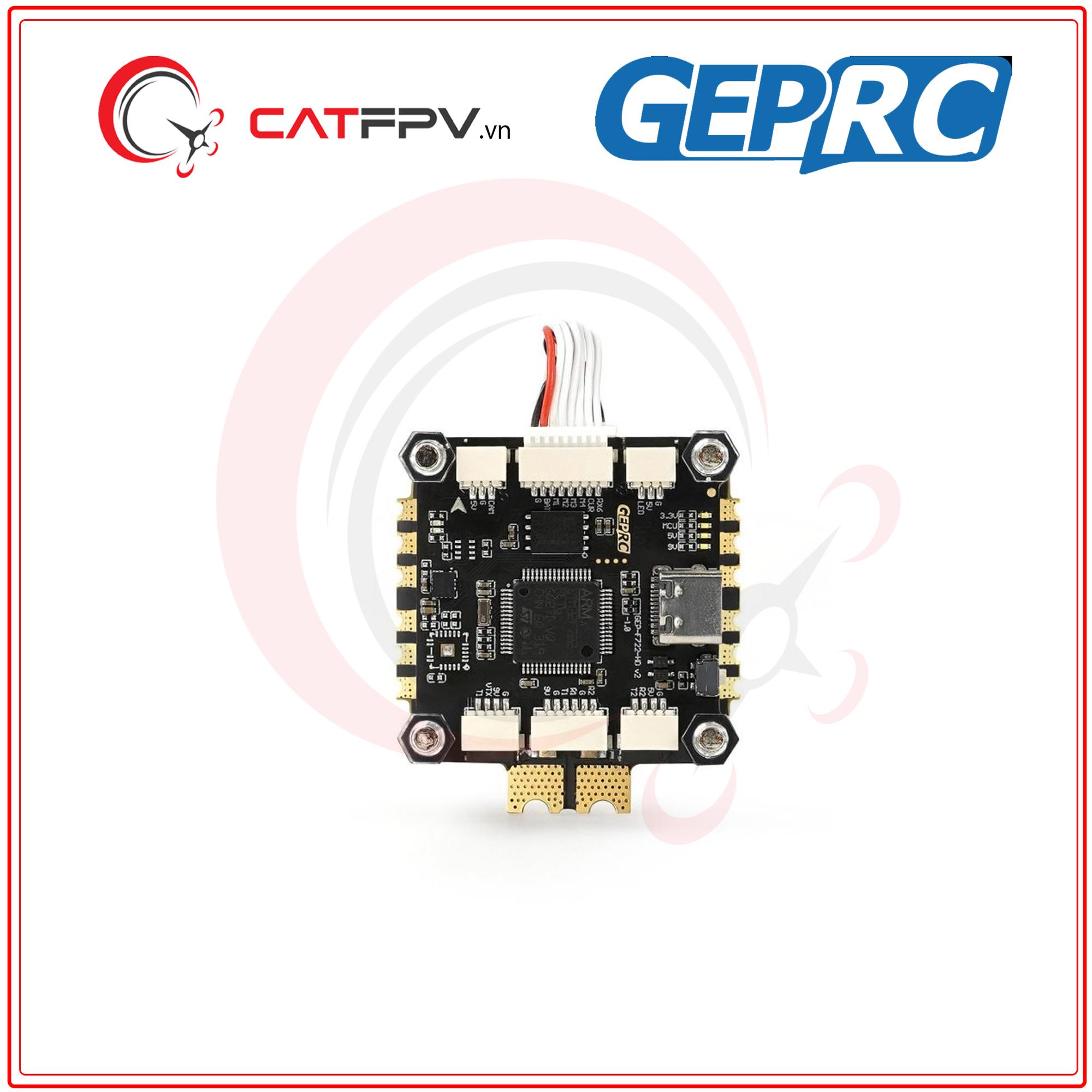

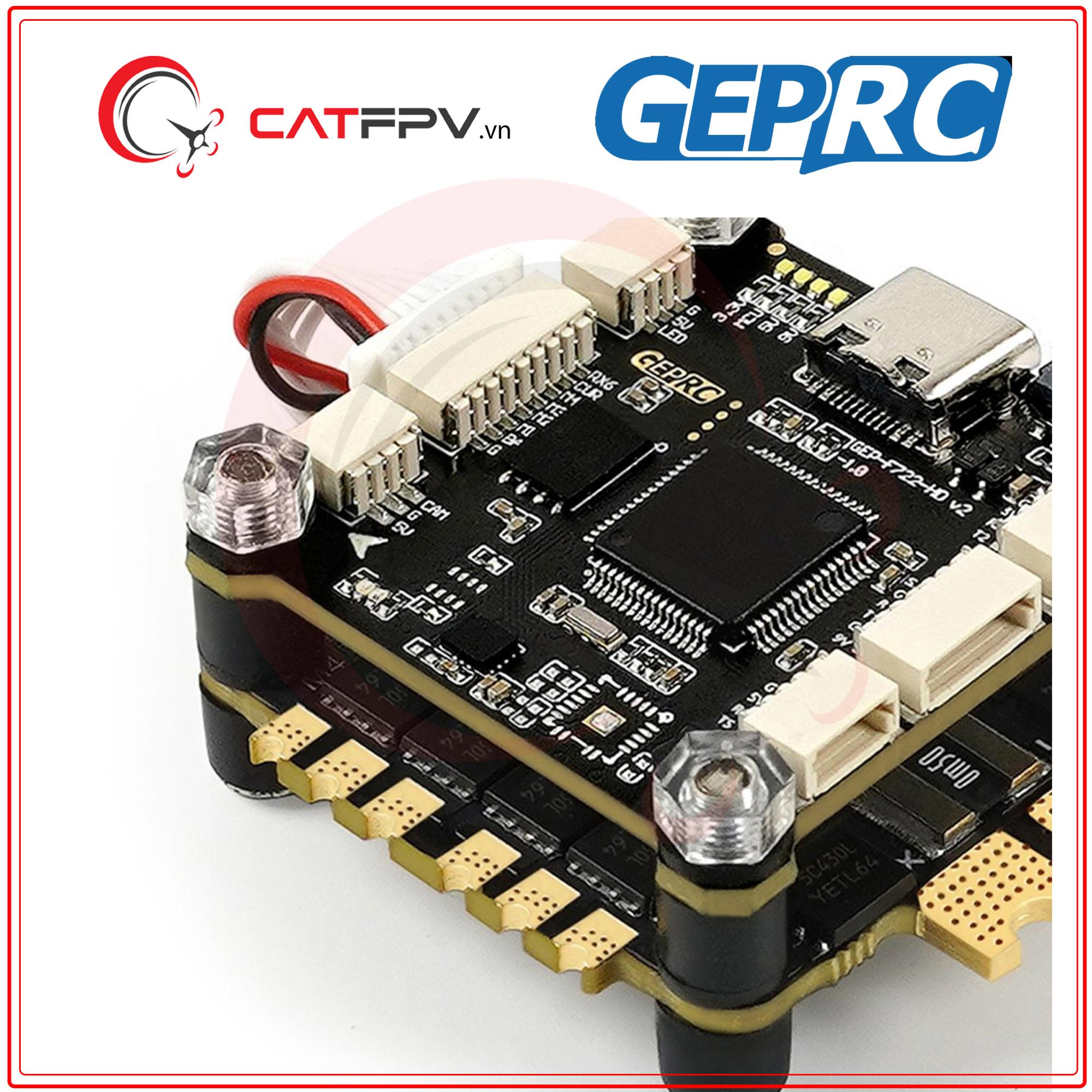

GEP-F722-HD v2 Flight Controller
MCU：STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
USB Interface：Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target：GEPRCF722
Size：36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
Input Voltage：3-6S LiPo
UART：5
Power Filter：Integrated LC filter
Weight：8.1g

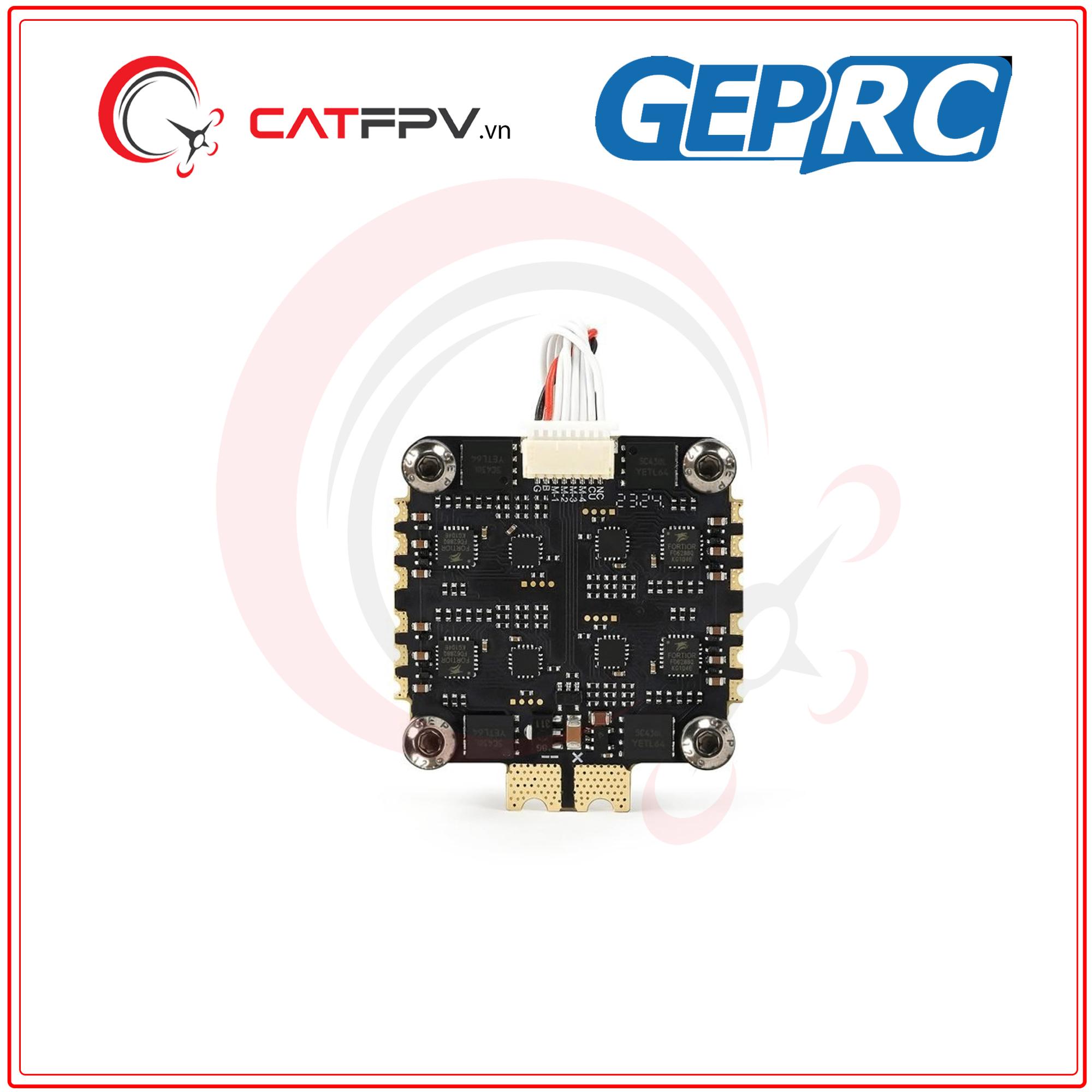

GEP-BLS60A-4IN1 ESC
Input Voltage：3-6S Lipo
Galvanometer：Support
Continue Current：60A
Burst Current：65A（5 seconds）
Support Protocol：Dshot 150/300/600
Size：42.9×39.7mm, hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.
Weight：13.7g
Target：G_H_30
Includes
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
